The Basics of Web.Link

Model and File Management

This section describes the Web.Link functions that enable you to access and manipulate models.

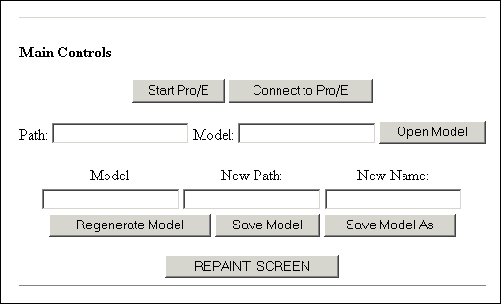

Model Management

Functions Introduced:

pfcScript.pwlMdlCurrentGet()

pfcScript.pwlSessionMdlsGet()

pfcScript.pwlMdlDependenciesGet()

pfcScript.pwlMdlInfoGet()

pfcScript.pwlMdlRegenerate()

To retrieve the current model in session, call the function pfcScript.pwlMdlCurrentGet(). The syntax is as follows:

   pwlMdlCurrentGet();
   Additional return fields:
      string MdlNameExt;   // The full name of the
                           // current model

The function pfcScript.pwlSessionMdlsGet() provides a list of all the models with the specified type that are in session. The syntax is as follows:

   pwlSessionMdlsGet (
      integer    MdlType   // The type of model to list.
                           // Use parseInt with this
                           // argument.
   );
   Additional return fields:
      integer    NumMdls;  // The number of models in
                           // the list.
      string MdlNameExt[]; // The full names of the
                           // models of the specified
                           // type.

The valid model types are as follows:

•

PWL_ASSEMBLY

•

PWL_PART

•

PWL_DRAWING

•

PWL_2DSECTION

•

PWL_LAYOUT

•

PWL_DWGFORM

•

PWL_MFG

•

PWL_REPORT

•

PWL_MARKUP

•

PWL_DIAGRAM

The function pfcScript.pwlMdlDependenciesGet() lists all the top-level dependencies for the specified model (that is, all the models upon which the given model depends). If any of these models is an assembly, the function does not list the dependencies for that assembly. The syntax is as follows:

   pwlMdlDependenciesGet (
      string MdlNameExt    // The full name of the model
                           // whose dependencies you want
   );
   Additional return fields:
      integer NumMdls;      // The number of models in the
                            // returned array
      string  MdlNameExt[]; // The array of models upon
                            // which the specified model
                            // depends

For the specified model, the function pfcScript.pwlMdlInfoGet() provides the generic name and model type. The syntax is as follows:

   pwlMdlInfoGet (
      string NameExt       // The full name of the model
   );
   Additional return fields:
      string  ImmediateGeneralName; // The immediate
                                    // general name
      string  TopGenericName;       // The top-level
                                    // generic name of
                                    // the model
      integer MdlType;              // The model type

The pfcScript.pwlMdlRegenerate() function regenerates the specified model. The syntax is as follows:

   pwlMdlRegenerate (
      string MdlNameExt   // The full name of the model
   );

File Management Operations

Functions Introduced:

pfcScript.pwlMdlOpen()

pfcScript.pwlMdlSaveAs()

pfcScript.pwlMdlErase()

pfcScript.pwlMdlRename()

The function pfcScript.pwlMdlOpen() retrieves the specified model. The syntax is as follows:

   pwlMdlOpen (
      string  MdlNameExt,      // The full name of the
                               // model.
      string  Path,            // The full directory
                               // path to the model.
      boolean DisplayInWindow  // If this is true, display
                               // the retrieved model in
                               // a Creo Parametric window.
   );
   Additional return field:
      integer     WindowID;    // The identifier of the
                               // window in which the
                               // model is displayed.

The Path argument is the full directory path to the model. If the model is already in memory, the function ignores this argument. If you try to open a model that is already in memory and supply an invalid Path, pfcScript.pwlMdlOpen() successfully opens the model anyway.

If Path is an empty string, the function uses the default Creo Parametric search path.

You can use the function pfcScript.pwlMdlOpen() to open a family table instance by specifying the name of the generic instance as the MdlNameExt argument.

The function pfcScript.pwlMdlErase() saves the model in memory to disk, under a new name. The syntax is as follows:

   pwlMdlSaveAs (
      string OrigNameExt,  // The original name of the
                           // model, including the
                           // extension
      string NewPath,      // The new path to the model
      string NewNameExt    // The new name of the model,
                           // including the extension
   );

Note

Web.Link does not currently support the Creo Parametric methods of saving subcomponents under new names, so NewPath and NewNameExt are optional.

The function pfcScript.pwlMdlErase() removes the specified model from memory. The syntax is as follows:

   pwlMdlErase (
      string MdlNameExt   // The full name of the model
                          // to erase from memory
   );

To rename a model in memory and on disk, use the function pfcScript.pwlMdlRename(). Note that the model must be in the current directory for the model to be renamed on disk. The syntax is as follows:

   pwlMdlRename (
      string OrigNameExt,  // The original name of the
                           // model, including the
                           // extension
      string NewNameExt    // The new name of the model,
                           // including the extension
   );

Model Items

Functions Introduced:

pfcScript.pwlItemNameToID()

pfcScript.pwlItemIDToName()

pfcScript.pwlItemNameSetByID()

The function pfcScript.pwlItemNameToID() returns the identifier of the specified model item, given its name. The syntax is as follows:

   pwlItemNameToID (
      string  MdlNameExt,  // The full name of the model
      string  ItemName,    // The name of the model item
      integer ItemType     // The type of model item
   );
   Additional return field:
      integer ItemID;      // The identifier of the
                           // model item

Similarly, to get the name of a model item given its identifier, use the function pfcScript.pwlItemIDToName(). The syntax is as follows:

   pwlItemIDToName (
      string  MdlNameExt,  // The full name of the model
      integer ItemID,      // The item identifier
      integer ItemType     // The type of model item
   );
   Additional return field:
      string  ItemName;    // The name of the model item

You can change the name of an item using the function pfcScript.pwlItemNameSetByID() function. The syntax is as follows:

   pwlItemNameSetByID (
      string  MdlNameExt, // The full name of the model
      integer ItemID,     // The identifier of the
                          // model item
      integer ItemType,   // The type of model item
      string  ItemName    // The new name for the model
                          // item
   );

The value of the ItemType argument should be PWL_FEATURE.

Windows and Views

This section describes the Web.Link functions that enable you to access and manipulate windows and views.

Windows

Functions Introduced:

pfcScript.pwlWindowRepaint()

pfcScript.pwlSessionWindowsGet()

pfcScript.pwlWindowMdlGet()

pfcScript.pwlWindowActiveGet()

pfcScript.pwlWindowActivate()

pfcScript.pwlWindowClose()

The function pfcScript.pwlWindowRepaint() repaints the window and removes highlights. Use the value –1 for the WindowID to repaint the current window. The syntax is as follows:

   pwlWindowRepaint (
      integer WindowID  // The window identifier. Use -1
                        // to repaint the current window.
                        // Use parseInt with this argument.
   );

The function pfcScript.pwlSessionWindowsGet() provides a count and the list of window identifiers for the current Creo Parametric session. The syntax is as follows:

   pwlSessionWindowsGet();
   Additional return fields:
     integer NumWindows;  // The number of windows
     integer WindowIDs[]; // The list of window identifiers

The function pfcScript.pwlWindowMdlGet() retrieves the model associated with the specified window. Use the value –1 for the current window. The syntax is as follows:

   pwlWindowMdlGet (
     integer WindowID       // The window identifier.
                            // Use -1 for the current
                            // window. Use parseInt with
                            // this argument.
   );
   Additional return field:
      string  MdlNameExt;   // The full name of the
                            // model associated with
                            // the specified window.

The function pfcScript.pwlWindowActiveGet() provides the identifier of the currently active window. The syntax is as follows:

   pwlWindowActiveGet();
   Additional return field:
      integer WindowID; // The identifier of the currently
                        // active window. Use parseInt
                        // with this argument.

The function pfcScript.pwlWindowActivate() makes the specified window active. This is equivalent to selecting Window, Activate from the Creo Parametric menu bar. The syntax is as follows:

   pwlWindowActivate (
      integer WindowID // The identifier of the window to
                       // make active. Use parseInt with
                       // this argument.
   );

To close a window, call pfcScript.pwlWindowClose(). Use the value –1 to close the current window. The syntax is as follows:

   pwlWindowClose (
      integer WindowID // The identifier of the window
                       // to close. Use parseInt with this
                       // argument.
   );

Note

If you are in the middle of an operation, such as creating a feature, Creo Parametric might display a dialog box asking you to confirm the cancellation of that operation.

Use any of the following functions to get the window identifier:

•

pfcScript.pwlGeomSimprepOpen()

•

pfcScript.pwlGraphicsSimprepOpen()

•

pfcScript.pwlInstanceOpen()

•

pfcScript.pwlMdlOpen()

•

pfcScript.pwlSessionWindowsGet()

•

pfcScript.pwlSimprepOpen()

•

pfcScript.pwlWindowActiveGet()

Views

Functions Introduced:

pfcScript.pwlViewSet()

pfcScript.pwlViewDefaultSet()

pfcScript.pwlMdlViewsGet()

The function pfcScript.pwlMdlViewsGet() sets the view for the specified model. The syntax is as follows:

   pwlViewSet (
      string  MdlNameExt,  // The full name of the model
      string  NamedView    // The name of the view
   );

The pfcScript.pwlViewDefaultSet() function sets the specified model to the default view for that model. The syntax is as follows:

   pwlViewDefaultSet (
      string  MdlNameExt    // The full name of the model
   );

The function pfcScript.pwlMdlViewsGet() provides the number and names of all the views in the specified model. The syntax is as follows:

   pwlMdlViewsGet (
      string  MdlNameExt    // The full name of the model
   );
   Additional return fields:
      integer NumViews;     // The number of views
      string  ViewNames[];  // The list of view names

Selection

This section describes the Web.Link functions that enable you to highlight and select objects.

Selection Functions

Functions Introduced:

pfcScript.pwlSelect()

pfcScript.pwlSelectionCreate()

pfcScript.pwlSelectionParse()

The function pfcScript.pwlSelect() enables the user to perform interactive selection on a Creo Parametric object. The syntax is as follows:

   pwlSelect (
      string  SelectableFilter,  // The selection filter.
      integer MaxSelectable      // The maximum number
                                 // of items that can be
                                 // selected. If this is
                                 // a negative number,
                                 // there is an unlimited
                                 // number of selections.
                                 // Use parseInt with
                                 // this argument.
   );
   Additional return fields:
      integer NumSelections;     // The number of
                                 // selections made.
      string  Selections[];      // The selections.

The valid selection filter is one or more of the following in a comma-separated list (with no spaces):

•

“feature”

•

“dimension”

•

“part”

•

“prt_or_asm”

Any other filter option causes a PWL_GENERAL_ERROR.

The function pfcScript.pwlSelectionCreate() creates a selection string. The function syntax is as follows:

   pwlSelectionCreate (
      string  TopModel,         // The top-level model.
      integer NumComponents,    // The number of
                                // components in the
                                // component path. Use
                                // parseInt with this
                                // argument.
      string  ComponentPath[],  // The model names for
                                // each level of the
                                // component path.
      integer ComponentIDs[],   // The model identifiers
                                // for each level of the
                                // component path. Use
                                // parseInt with this
                                // argument.
      integer ItemType,         // The type of selection
                                // item. Use parseInt
                                // with this argument.
      integer ItemID            // The identifier of
                                // the selection item.
                                // Use parseInt with this
                                // argument.
   );
   Additional return field:
      string  Selection;        // The selection string.

The “component path” is the path down from the root assembly to the model that owns the database item being referenced.

The possible values for ItemType are as follows:

•

PWL_DIMENSION

•

PWL_FEATURE

•

PWL_TYPE_UNUSED

Note that you must always pass the TopModel. If the selection does not involve an assembly, NumComponents should be 0, and ComponentPath and ComponentIDs can be null. The ComponentIDs argument can also be null if the ComponentPath is enough to describe the selection. If ItemType and ItemID are PWL_TYPE_UNUSED, the selection will be the model itself.

The function pfcScript.pwlSelectionParse() separates the specified selection string. The syntax is as follows:

   pwlSelectionParse (
      string  SelString         // The selection string
                                // to parse
   );
   Addition return fields:
      string  TopModel;         // The top-level model
      integer NumComponents;    // The number of
                                // components in the
                                // component path
      string  ComponentPath[];  // The model names for
                                // each level of the
                                // component path
      integer ComponentIDs[];   // The model identifiers
                                // for each level of the
                                // component path
      integer ItemType;         // The type of selection
                                // item
      integer ItemID;           // The identifier of the
                                // selection item

Highlighting

Functions Introduced:

pfcScript.pwlItemHighlight()

pfcScript.pwlItemUnhighlight()

The function pfcScript.pwlItemHighlight() highlights the specified item, whereas pfcScript.pwlItemUnhighlight() removes the highlighting. Each function requires the full path to the item, and returns no additional fields. The syntax of the two functions is as follows:

   pwlItemHighlight (
      string  SelString    // The selection string that
                           // identifies the item
   );

   pwlItemUnhighlight (
      string  SelString    // The selection string that
                           // identifies the item
   );

Parts Materials

This chapter describes the Web.Link functions that enable you to access and manipulate part materials.

Setting Materials

Functions Introduced:

pfcScript.pwlPartMaterialCurrentGet()

pfcScript.pwlPartMaterialCurrentSet()

pfcScript.pwlPartMaterialSet()

pfcScript.pwlPartMaterialsGet()

pfcScript.pwlPartMaterialDataGet()

pfcScript.pwlPartMaterialDataSet()

The material properties functions are used to manipulate material properties and material property data for a Creo Parametric part.

The function pfcScript.pwlPartMaterialCurrentGet() gets the name of the current material used by the specified model. (The function pfcScript.pwlPartMaterialsGet() is identical to pfcScript.pwlPartMaterialCurrentGet(), and is maintained for backward compatibility.) The syntax of the function is as follows:

   pwlPartMaterialCurrentGet (
      string  MdlNameExt    // The full name of the model
   );
   Additional return field:
      string  MaterialName; // The name of the current
                            // material

To set the material for a part from a file, call the function pfcScript.pwlPartMaterialSet(). The material must be defined, or the function will fail. The syntax is as follows:

   pwlPartMaterialSet (
      string  MdlNameExt,   // The full name of the model
      string  MaterialName  // The name of the material
                            // file
   );

To set the material for a part, call the function pfcScript.pwlPartMaterialCurrentSet(). Note that the material must already be associated with the part, or the function will fail. The syntax is as follows:

   pwlPartMaterialCurrentSet (
      string  MdlNameExt,   // The full name of the model
      string  MaterialName  // The name of the material
   );

The function pfcScript.pwlPartMaterialsGet() provides the number and the list of all the materials used in the specified part. The syntax is as follows:

   pwlPartMaterialsGet (
      string  MdlNameExt      // The full name of the
                              // model
   );
   Additional return fields:
      integer NumMaterials;   // The number of materials
                              // used in the part
      string  Materials[];    // The list of materials

The pfcScript.pwlPartMaterialDataGet() function gets the material data for the specified part and material. The syntax is as follows:

   pwlPartMaterialdataGet (
      string  MdlNameExt,         // The full name of the
                                  // model
      string  MaterialName        // The name of the
                                  // material
   );
   Additional return fields:
      number  YoungModulus;       // The young modulus
      number  PoissonRatio;       // The Poisson ratio
      number  ShearModulus;       // The shear modulus
      number  MassDensity;        // The mass density
      number  ThermExpCoef;       // The thermal expansion
                                  // coefficient
      number  ThermExpRefTemp;    // The thermal expansion
                                  // reference temperature
      number  StructDampCoef;     // The structural
                                  // damping coefficient
      number  StressLimTension;   // The stress limit
                                  // for tension
      number  StressLimCompress;  // The stress limit for
                                  // compression
      number  StressLimShear;     // The stress limit for
                                  // shear
      number  ThermConductivity;  // The thermal
                                  // conductivity
      number  Emissivity;         // The emissivity
      number  SpecificHeat;       // The specific heat
      number  Hardness;           // The hardness
      string  Condition;          // The condition
      number  InitBendYFactor;    // The initial bend
                                  // Y factor
      string  BendTable;          // The bend table

To set the values of the material data elements, call the function pfcScript.pwlPartMaterialDataSet(). The syntax is as follows:

   pwlPartMaterialdataSet (
      string  MdlNameExt,         // The full name of the
                                  // model
      string  MaterialName,       // The name of the
                                  // material
      number  YoungModulus,       // The young modulus
      number  PoissonRatio,       // The Poisson ratio
      number  ShearModulus,       // The shear modulus
      number  MassDensity,        // The mass density
      number  ThermExpCoef,       // The thermal expansion
                                  // coefficient
      number  ThermExpRefTemp,    // The thermal expansion
                                  // reference temperature
      number  StructDampCoef,     // The structural
                                  // damping coefficient
      number  StressLimTension,   // The stress limit
                                  // for tension
      number  StressLimCompress,  // The stress limit for
                                  // compression
      number  StressLimShear,     // The stress limit for
                                  // shear
      number  ThermConductivity,  // The thermal
                                  // conductivity
      number  Emissivity,         // The emissivity
      number  SpecificHeat,       // The specific heat
      number  Hardness,           // The hardness
      string  Condition,          // The condition
      number  InitBendYFactor,    // The initial bend
                                  // Y factor
      string  BendTable           // The bend table
   );

Assemblies

This section describes the Web.Link functions that enable you to access assemblies and their components.

Assembly Components

Functions Introduced:

pfcScript.pwlAssemblyComponentsGet()

pfcScript.pwlAssemblyComponentReplace()

The function pfcScript.pwlAssemblyComponentsGet() provides a list of all the components in the specified assembly. This is a subset of the dependency list. (To get the entire list of dependencies, use the function pfcScript.pwlMdlDependenciesGet().) The syntax is as follows:

   pwlAssemblyComponentsGet (
      string AsmNameExt     // The full name of the
                            // assembly
   );
   Additional return fields:
      integer NumMdls;       // The number of components
      string  MdlNameExt[];  // The full names of the
                             // assembly components
      integer ComponentID[]; // The array of component
                             // identifiers

The function pfcScript.pwlAssemblyComponentReplace() enables you to replace one component for another. The syntax is as follows:

   pwlAssemblyComponentReplace (
      string  AsmNameExt,         // The full name of
                                  // the assembly.
      string  NewComponentNameExt,// The full name of the
                                  // new component.
      integer NumComponentIDs,    // The number of
                                  // components to be
                                  // replaced. Use
                                  // parseInt with this
                                  // argument.
      integer ComponentIDs[])     // The identifiers of
                                  // the components to
                                  // be replaced. Use
                                  // parseInt with this
                                  // argument.

The ComponentIDs argument is an array of component identifiers. If the parent has multiple occurrences of the component, this argument specifies which components to replace. The component identifiers are the feature identifiers. If this argument is an empty or null array, the function replaces all occurrences of the component.

The pfcScript.pwlAssemblyComponentReplace() function uses the following techniques, in order of precedence:

Automatic assembly from notebook mode

Family table membership

Interchange assembly

Note

If you want to use an interchange assembly, you must first load it into memory. Use the function pfcScript.pwlMdlOpen() and set the argument DisplayInWindow to false.

Exploded Assemblies

Functions Introduced:

pfcScript.pwlAssemblyExplodeStatusGet()

pfcScript.pwlAssemblyExplodeStatusSet()

pfcScript.pwlAssemblyExplodeDefaultSet()

pfcScript.pwlAssemblyExplodeStatesGet()

pfcScript.pwlAssemblyExplodeStateSet()

These functions deal with the explode status and explode states of assemblies. The “explode status” specifies whether the given assembly is exploded, whereas the “explode state” describes what the assembly looks like when it is exploded.

The function pfcScript.pwlAssemblyExplodeStatusGet() provides the explode status of the specified assembly. The ExplodeStatus is a Boolean value. If it is true, the assembly is exploded.

The syntax is as follows:

   pwlAssemblyExplodeStatusGet (
      string  AsmNameExt     // The full name of the
                             // assembly.
   );
   Additional return field:
      boolean ExplodeStatus; // If this is true, the
                             // assembly is exploded.

Similarly, the pfcScript.pwlAssemblyExplodeStatusSet() function enables you to set the explode status for the specified assembly. The syntax is as follows:

   pwlAssemblyExplodeStatusSet (
      string  AsmNameExt,     // The full name of the
                              // assembly
      boolean ExplodeStatus   // The new explode status
   );

The function pfcScript.pwlAssemblyExplodeStatusSet() sets the assembly’s explode state to use the default component locations. The syntax is as follows:

   pwlAssemblyExplodeDefaultSet (
      string AsmNameExt   // The full name of the assembly
   );

The function pfcScript.pwlAssemblyExplodeStatusSet() provides the number and list of explode states for the specified assembly. The syntax is as follows:

   pwlAssemblyExplodeStatesGet (
      string  AsmNameExt         // The full name of the
                                 // assembly
   );
   Additional return fields:
      integer NumExpldstates;    // The number of explode
                                 // states
      string  ExpldstateNames[]; // The names of the
                                 // explode states

To set the explode state for a given assembly, call the function pfcScript.pwlAssemblyExplodeStatusSet(). The syntax is as follows:

   pwlAssemblyExplodeStateSet (
      string AsmNameExt,      // The full name of the
                              // assembly
      string ExpldstateName   // The name of a predefined
                              // explode state
   );

Features

This section describes the Web.Link functions that enable you to access and manipulate features in Creo Parametric.

Feature Inquiry

Functions Introduced:

pfcScript.pwlMdlFeaturesGet()

pfcScript.pwlFeatureInfoGetByID()

pfcScript.pwlFeatureInfoGetByName()

pfcScript.pwlFeatureParentsGet()

pfcScript.pwlFeatureChildrenGet()

pfcScript.pwlFeatureStatusGet()

The pfcScript.pwlMdlFeaturesGet() function returns all the features that are known to the end user, including suppressed features. The syntax is as follows:

   pwlMdlFeaturesGet (
      string  MdlNameExt,   // The full name of the model.
      integer FeatureType   // The type of feature to
                            // list. Use parseInt with
                            // this argument.
   );
   Additional return fields:
      integer NumFeatures;  // The number of features.
      integer FeatureIDs[]; // The list of feature
                            // identifiers.

Use –1 for the FeatureType argument to get a list of all the features. See the section Pro/Web.Link Constants for a complete list of the possible feature types.

The function pfcScript.pwlFeatureInfoGetByID() gets the information about the specified feature, given its identifier. The syntax is as follows:

   pwlFeatureInfoGetByID (
      string  MdlNameExt,   // The full name of the model.
      integer FeatureID     // The feature identifier.
                            // Use parseInt with this
                            // argument.
   );
   Additional return fields:
      integer FeatureType;   // The feature type.
      integer FeatureID;     // The feature identifier.
      string  FeatureName;   // The name of the feature.
      string  FeatTypeName;  // The string name of the
                             // feature type, such as
                             // "Hole."

The pfcScript.pwlFeatureInfoGetByName() is identical to pfcScript.pwlFeatureInfoGetByID(), except you specify the name of the feature instead of its identifier. The syntax is as follows:

   pwlFeatureInfoGetByName (
      string MdlNameExt,    // The full name of the model
      string FeatureName    // The name of the feature
   );
   Additional return fields:
      integer FeatureType;   // The feature type
      integer FeatureID;     // The feature identifier
      string  FeatureName;   // The name of the feature
      string  FeatTypeName;  // The string name of the
                             // feature type, such as
                             // "Hole"

To get the parents of a feature, call the function pfcScript.pwlFeatureParentsGet(). The syntax is as follows:

   pwlFeatureParentsGet (
      string  MdlNameExt,    // The full name of the model.
      integer FeatureID      // The identifier of the
                             // child feature. Use
                             // parseInt with this
                             // argument.
   );
   Additional return fields:
      integer NumParents;   // The number of parents.
      integer ParentIDs[];  // The list of feature
                            // identifiers for the
                            // parents.

Similarly, the function pfcScript.pwlFeatureChildrenGet() provides the children of the specified feature. The syntax is as follows:

   pwlFeatureChildrenGet (
       string  MdlNameExt,   // The full name of the model.
       integer FeatureID     // The identifier of the
                             // parent feature. Use
                             // parseInt with this
                             // argument.
   );
   Additional return fields:
       integer NumChildren; // The number of children.
       integer ChildIDs[];  // The list of feature
                            // identifiers for the
                            // children.

The function pfcScript.pwlFeatureStatusGet() gets the status of the specified feature. The syntax is as follows:

   pwlFeatureStatusGet (
      string  MdlNameExt,  // The full name of the model.
      integer FeatureID    // The feature identifier.
                           // Use parseInt with this
                           // argument.
   );
   Additional return fields:
      integer FeatureStatus;       // The feature status.
      integer PatternStatus;       // The pattern status.
      integer GroupStatus;         // The group status.
      integer GroupPatternStatus;  // The group pattern
                                   // status.

The return fields are as follows:

•

FeatureStatus—The feature status. The defined constants are as follows:

○

PWL_FEAT_ACTIVE—An ordinary feature.

○

PWL_FEAT_INACTIVE—A feature that is not suppressed, but is not currently in use for another reason. For example, a family table instance that excludes this feature.

○

PWL_FEAT_FAMTAB_SUPPRESSED—A feature suppressed by family table functionality.

○

PWL_FEAT_SIMP_REP_SUPPRESSED—A feature suppressed by simplified representation functionality.

○

PWL_FEAT_PROG_SUPPRESSED—A feature suppressed by Pro/PROGRAMTM functionality.

○

PWL_FEAT_SUPPRESSED—A suppressed feature.

○

PWL_FEAT_UNREGENERATED—A feature that is active, but not regenerated due to a regeneration failure that has not been fixed. This regeneration failure might result from an earlier feature.

•

PatternStatus—The pattern status. The defined constants are as follows:

○

PWL_NONE—The feature is not in a pattern.

○

PWL_LEADER—The feature is the leader of a pattern.

○

PWL_MEMBER—The feature is a member of the pattern.

•

GroupStatus—The group status. The defined constants are as follows:

○

PWL_NONE—The feature is not in a group pattern.

○

PWL_MEMBER—The feature is in a group that is a group pattern member.

•

GroupPatternStatus—The group pattern status. The defined constants are as follows:

○

PWL_NONE—The feature is not in a group pattern.

○

PWL_LEADER—The feature is the leader of the group pattern.

○

PWL_MEMBER—The feature is a member of the group pattern.

Feature Names

Functions Introduced:

pfcScript.pwlFeatureNameGetByID()

pfcScript.pwlFeatureNameSetByID()

The function pfcScript.pwlFeatureNameGetByID() provides the name of the specified feature, given its identifier. The syntax is as follows:

   pwlFeatureNameGetByID (
      string  MdlNameExt,   // The full name of the model.
      integer FeatureID     // The feature identifier. Use
                            // parseInt with this
                            // argument.
   );
   Additional return field:
      string FeatureName;   // The name of the feature.

To change the name of a feature, use the function pfcScript.pwlFeatureNameSetByID(). The syntax is as follows:

   pwlFeatureNameSetByID (
      string  MdlNameExt,   // The full name of the model.
      integer FeatureID,    // The feature identifier.
                            // Use parseInt with this
                            // argument.
      string  FeatureName   // The new name of the
                            // feature.
   );

Manipulating Features

The following sections describe the Web.Link functions that enable you to suppress, resume, and delete features.

Suppressing Features

Functions Introduced:

pfcScript.pwlFeatureSuppressByID()

pfcScript.pwlFeatureSuppressByIDList()

pfcScript.pwlFeatureSuppressByLayer()

pfcScript.pwlFeatureSuppressByName()

These functions enable you to suppress features by specifying their identifiers, identifier lists, layers, or names. The syntax for the functions is as follows:

   pwlFeatureSuppressByID (
       string  MdlNameExt,   // The full name of the model.
       integer FeatureID     // The identifier of the
                             // feature to suppress. Use
                             // parseInt with this
                             // argument.
   );

   pwlFeatureSuppressByIDList (
       string  MdlNameExt,   // The full name of the model.
       integer NumFeatures,  // The number of feature
                             // identifiers in the list.
                             // Use parseInt with this
                             // argument.
       integer FeatureIDs[]  // The list of identifiers
                             // of features to suppress.
                             // Use parseInt with this
                             // argument.
   );

   pwlFeatureSuppressByLayer (
       string MdlNameExt,   // The full name of the model
       string LayerName     // The name of the layer
                            // to suppress
   );

   pwlFeatureSuppressByName (
       string MdlNameExt,   // The full name of the
                            // model
       string FeatureName   // The name of the feature
                            // to suppress
   );

Resuming Features

Functions Introduced:

pfcScript.pwlFeatureResumeByID()

pfcScript.pwlFeatureResumeByIDList()

pfcScript.pwlFeatureResumeByLayer()

pfcScript.pwlFeatureResumeByName()

These functions alow you to resume features by specifying their identifiers, identifier lists, layers, or names. These functions take the additional argument ResumeParents, of type Boolean. If you set this argument to true, the functions also resume the parents of the specified feature, if they are suppressed.

The syntax of the functions is as follows:

   pwlFeatureResumeByID (
      string  MdlNameExt,     // The full name of the
                              // model.
      integer FeatureID,      // The identifier of the
                              // feature to resume. Use
                              // parseInt with this
                              // argument.
      boolean ResumeParents   // Specifies whether to
                              // resume the parents of
                              // the feature.
   );

   pwlFeatureResumeByIDList (
      string  MdlNameExt,     // The full name of the
                              // model.
      integer NumFeatures,    // The number of identifiers
                              // in the list. Use parseInt
                              // with this argument.
      integer FeatureIDs[],   // The list of identifiers
                              // of features to resume.
                              // Use parseInt with this
                              // argument.
      boolean ResumeParents   // Specifies whether to
                              // resume the parents of
                              // the features.
   );

   pwlFeatureResumeByLayer (
      string  MdlNameExt,     // The full name of the
                              // model
      string  LayerName,      // The name of the layer
                              // to resume
      boolean ResumeParents   // Specifies whether to
                              // resume the parents of
                              // the features
   );

   pwlFeatureResumeByName (
      string  MdlNameExt,     // The full name of the
                              // model
      string  FeatureName,    // The name of the feature
                              // to resume
      boolean ResumeParents   // Specifies whether to
                              // resume the parents of
                              // the feature
   );

Deleting Features

Functions Introduced:

pfcScript.pwlFeatureDeleteByID()

pfcScript.pwlFeatureDeleteByIDList()

pfcScript.pwlFeatureDeleteByLayer()

pfcScript.pwlFeatureDeleteByName()

These functions enable you to delete features by specifying their identifiers, identifier lists, layers, or names.

Note

If the feature has children, the children are also deleted.

The syntax of the functions is as follows:

   pwlFeatureDeleteByID (
      string  MdlNameExt,  // The full name of the model.
      integer FeatureID    // The identifier of the
                           // feature to delete. Use
                           // parseInt with this
                           // argument.
   );

   pwlFeatureDeleteByIDList (
      string  MdlNameExt,   // The full name of the model.
      integer NumFeatures,  // The number of identifiers
                            // in the list. Use parseInt
                            // with this argument.
      integer FeatureIDs[]  // The list of identifiers
                            // of features to delete. Use
                            // parseInt with this
                            // argument.
   );

   pwlFeatureDeleteByLayer (
      string MdlNameExt,   // The full name of the model
      string LayerName     // The name of the layer to
                           // delete
   );

   pwlFeatureDeleteByName (
      string MdlNameExt,   // The full name of the model
      string FeatureName   // The name of the feature
                           // to delete
   );

Displaying Parameters

Function introduced:

pfcScript.pwlFeatureParametersDisplay()

The function pfcScript.pwlFeatureParametersDisplay() shows the specified parameter types for a feature in the graphics window. The syntax is as follows:

   pwlFeatureParametersDisplay (
      string  SelString, // The selection string that
                         // identifies the feature.
      integer ItemType   // The type of parameter to
                         // display. Use parseInt with
                         // this argument.
   );

The possible values for ItemType are as follows:

•

PWL_USER_PARAM

•

PWL_DIM_PARAM

•

PWL_PATTERN_PARAM

•

PWL_REFDIM_PARAM

•

PWL_ALL_PARAMS

•

PWL_GTOL_PARAM

•

PWL_SURFFIN_PARAM

Parameters

This section describes the Web.Link functions that enable you to access and manipulate user parameters.

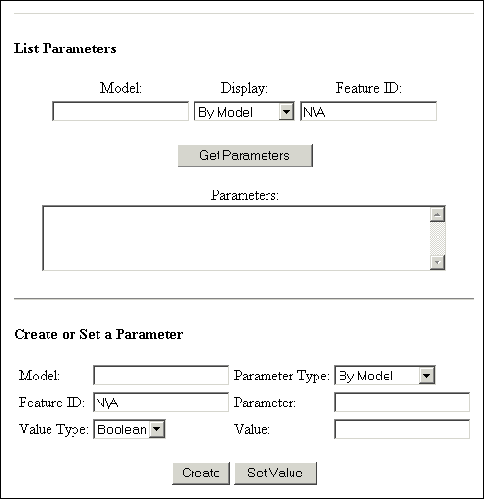

Listing Parameters

Functions Introduced:

pfcScript.pwlMdlParametersGet()

pfcScript.pwlFeatureParametersGet()

The function pfcScript.pwlMdlParametersGet() retrieves all model parameters, given the name of the model. This does not include parameters on a feature. The syntax is as follows:

   pwlMdlParametersGet (
      string  MdlNameExt     // The full name of the model
   );
   Additional return fields:
      integer NumParams;     // The number of parameters
                             // in the array ParamNames
      string  ParamNames[];  // The list of parameter
                             // names

The function pfcScript.pwlFeatureParametersGet() retrieves the parameters for the specified feature. The syntax is as follows:

   pwlFeatureParametersGet (
       string  MdlNameExt,   // The full name of the
                             // model (part or assembly).
       integer FeatureID     // The identifier for which
                             // parameters should be
                             // found. Use parseInt with
                             // this argument.
   );
   Additional return fields:
       integer NumParams;    // The number of parameters
                             // in the array ParamNames.
       string  ParamNames[]; // The list of parameter
                             // names.

Note

This function applies only to parts and assemblies.

Identifying Parameters

Uniquely identifying a parameter requires more than the model and parameter names because the parameter name could be used by the model and several features. Therefore, two additional arguments are required for all parameter functions—the item type and item identifier. The item type is either PWL_FEATURE or PWL_MODEL.

The item identifier does not apply to model parameters, but contains the feature identifier for feature parameters. The item identifier must be an integer value even if it is not used.

Reading and Modifying Parameters

Functions Introduced:

pfcScript.pwlParameterValueGet()

pfcScript.pwlParameterValueSet()

pfcScript.pwlParameterCreate()

pfcScript.pwlParameterDelete()

pfcScript.pwlParameterRename()

pfcScript.pwlParameterReset()

To retrieve the value of a parameter, use the function pfcScript.pwlParameterValueGet(). The syntax is as follows:

   pwlParameterValueGet (
      string  MdlNameExt,       // The full name of the
                                // model.
      integer ItemType,         // Specifies whether it
                                // is a model (PWL_MODEL)
                                // or a feature parameter
                                // (PWL_FEATURE). Use
                                // parseInt with this
                                // argument.
      integer ItemID,           // The feature identifier.
                                // This is unused for
                                // model parameters. Use
                                // parseInt with this
                                // argument.
      string  ParamName         // The name of the
                                // parameter.
   );
   Additional return fields:
      integer ParamType;        // Specifies the data

The function returns five additional fields, but only two will be set. The field ParamType is always set, and its value determines what other field should be used, according to the following table.

Value of the ParamType	Additional Fields
PWL_VALUE_INTEGER	ParamIntVal
PWL_VALUE_DOUBLE	ParamDoubleVal
PWL_VALUE_STRING	ParamStringVal
PWL_VALUE_BOOLEAN	ParamBooleanVal

The following code fragment shows how to use this function.

<script language = "JavaScript">
function WlParameterGetValue()
{
  var mdl_ret = document.pwl.pwlMdlInfoGet (
      document.get_value.ModelNameExt.value);
  if (!mdl_ret.Status)
  {
    alert ("pwlMdlInfoGet failed (" + mdl_ret.ErrorCode + ")");
    return;
  }
  var ret = document.pwl.pwlParameterValueGet (
      document.get_value.ModelNameExt.value, parseInt (mdl_ret.MdlType),
      0 /* unused */, document.get_value.ParamName.value);
  if (!ret.Status)
  {
    alert ("pwlParameterValueGet failed (" + ret.ErrorCode + ")");
    return;
  }
  if (ret.ParamType == parseInt (document.pwl.PWL_VALUE_DOUBLE))
  {
    document.get_value.Value.value = ret.ParamDoubleVal;
  }
  else if (ret.ParamType == parseInt (document.pwl.PWL_VALUE_STRING))
  {
    document.get_value.Value.value = ret.ParamStringVal;
  }
  else if (ret.ParamType == parseInt (document.pwl.PWL_VALUE_INTEGER))
  {
    document.get_value.Value.value = ret.ParamIntVal;
  }
  else if (ret.ParamType == parseInt (document.pwl.PWL_VALUE_BOOLEAN))
  {
    document.get_value.Value.value = ret.ParamBooleanVal;
  }
}
</script>

<form name = "get_value">
<h4>Get a Value for a Parameter (Model Parameters Only)</h4>
<p>
<center>
<!-- Input arguments -->
Model: <input type = "text" name = "ModelNameExt">
Parameter: <input type = "text" name = "ParamName">
<p>
<!-- Buttons -->
<input type = "button" value = "Get Value"
     onclick = "WlParameterGetValue()">
<p>
<!-- Output arguments -->
Value: <input type = "text" name = "Value">
</center>
<hr>
</form>

Setting a parameter using the function pfcScript.pwlParameterValueSet() requires several arguments to allow for all the possibilities. The syntax is as follows:

   pwlParameterValueSet (
      string  MdlNameExt, // The full name of the model.
      integer ItemType,   // Specifies whether it is a
                          // model (PWL_MODEL) or a
                          // feature parameter
                          // (PWL_FEATURE). Use parseInt
                          // with this argument.
      integer ItemID,     // The feature identifier.
                          // This is unused for model
                          // parameters. Use parseInt
                          // with this argument.
      string  ParamName,  // The name of the parameter.
      integer ValueType,  // Specifies the data type of
                          // the value. Use parseInt
                          // with this argument.
      integer IntVal,     // The integer value. Use
                          // parseInt with this argument.
      number  DoubleVal,  // The number value. Use
                          // parseFloat with this
                          // argument.
      string  StringVal,  // The string value.
      Boolean BooleanVal  // The Boolean value.
   );

The value of ValueType determines which of the other four values will be used. Although only one of IntVal, DoubleVal, StringVal, and BooleanVal will be used, all must be the proper data types or an error will occur.

Creating and setting parameters are very similar. The function pfcScript.pwlParameterCreate() takes the same arguments and has the same return fields as pfcScript.pwlParameterValueSet(). However, creation fails if the parameter already exists, whereas setting the value succeeds only on existing parameters.

The following code fragment shows how to create a string parameter.

<script language = "JavaScript">
function WlParameterCreate()
{
  var mdl_ret = document.pwl.pwlMdlInfoGet (
      document.create.ModelNameExt.value);
  if (!mdl_ret.Status)
  {
    alert ("pwlMdlInfoGet failed (" + mdl_ret.ErrorCode + ")");
    return;
  }
  var ret = document.pwl.pwlParameterCreate (
      document.create.ModelNameExt.value, parseInt (mdl_ret.MdlType),
      0 /* unused */, document.create.ParamName.value,
      parseInt (document.pwl.PWL_VALUE_STRING), 0 /* unused */,
      0.0 /* unused */, document.create.Value.value, false /* unused */);
  if (!ret.Status)
  {
    alert ("pwlParameterCreate failed (" + ret.ErrorCode + ")");
    return;
  }
}
</script>

<form name = "create">
<h4>Create Parameter (Model Parameter with string Value Only)</h4>
<p>
<center>
<!-- Input arguments -->
Model: <input type = "text" name = "ModelNameExt">
Parameter: <input type = "text" name = "ParamName">
Value: <input type = "text" name = "Value">
<p>
<!-- Buttons -->
<input type = "button" value = "Create Parameter"
onclick = "WlParameterCreate()">
<p>
</center>
<hr>
</form>

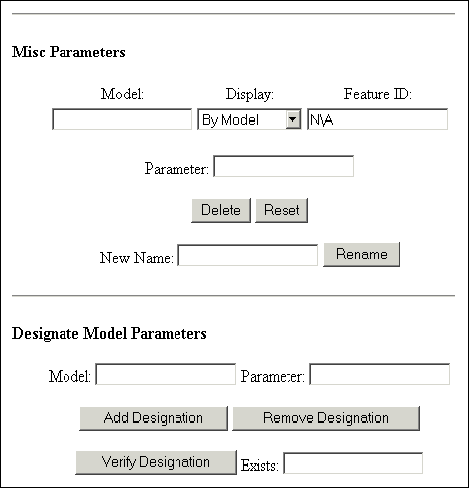

The function pfcScript.pwlParameterDelete() deletes the specified parameter. The syntax is as follows:

   pwlParameterDelete (
      string  MdlNameExt,   // The full name of the
                            // model.
      integer ItemType,     // Specifies whether it is
                            // a model (PWL_MODEL) or
                            // a feature parameter
                            // (PWL_FEATURE). Use
                            // parseInt with this
                            // argument.
      integer ItemID,       // The feature identifier.
                            // This is unused for model
                            // parameters. Use parseInt
                            // with this argument.
      string  ParamName     // The name of the parameter.
   );

To rename a parameter, call the pfcScript.pwlParameterRename() function. The syntax is as follows:

   pwlParameterRename (
      string  MdlNameExt,   // The full name of the
                            // model.
      integer ItemType,     // Specifies whether it is
                            // a model (PWL_MODEL) or
                            // a feature parameter
                            // (PWL_FEATURE). Use
                            // parseInt with this
                            // argument.
      integer ItemID,       // The feature identifier.
                            // This is unused for model
                            // parameters. Use parseInt
                            // with this argument.
      string  ParamName,    // The old name of the
                            // parameter.
      string  NewName       // The new name of the
                            // parameter.
   );

The function pfcScript.pwlParameterReset() restores the parameter's value to the one it had at the end of the last regeneration. The syntax is as follows:

   pwlParameterReset (
      string  MdlNameExt,   // The full name of the
                            // model.
      integer ItemType,     // Specifies whether it is
                            // a model (PWL_MODEL) or
                            // a feature parameter
                            // (PWL_FEATURE). Use
                            // parseInt with this
                            // argument.
      integer ItemID,       // The feature identifier.
                            // This is unused for model
                            // parameters. Use parseInt
                            // with this argument.
      string  ParamName     // The name of the parameter.
   );

Designating Parameters

Functions Introduced:

pfcScript.pwlParameterDesignationAdd()

pfcScript.pwlParameterDesignationRemove()

pfcScript.pwlParameterDesignationVerify()

These functions control the designation of model parameters for Windchill. A designated parameter will become visible within Windchill as an attribute when the model is next submitted.

The function pfcScript.pwlParameterDesignationAdd() designates an existing parameter. The syntax is as follows:

   pwlParameterDesignationAdd (
      string  MdlNameExt,  // The full name of the model
      string  ParamName    // The name of the parameter
   );

The pfcScript.pwlParameterDesignationRemove() function removes the designation. The syntax is as follows:

   pwlParameterDesignationAdd (
      string  MdlNameExt,  // The full name of the model
      string  ParamName    // The name of the parameter
   );

To verify whether a parameter is currently designated, call pfcScript.pwlParameterDesignationVerify(). The syntax is as follows:

   pwlParameterDesignationVerify (
      string  MdlNameExt,  // The full name of the model.
      string  ParamName    // The name of the parameter.
   );
   Additional return field:
      boolean Exists;      // If this is true, the
                           // parameter is currently
                           // designated.

Parameter Example

The following example shows how to use the Web.Link parameter functions.

<html xmlns:v="urn:schemas-microsoft-com:vml"
xmlns:o="urn:schemas-microsoft-com:office:office"
xmlns:w="urn:schemas-microsoft-com:office:word"
xmlns="http://www.w3.org/TR/REC-html40">

<head>
<meta http-equiv=Content-Type content="text/html; charset=us-ascii">
<meta name=ProgId content=Word.Document>
<meta name=Generator content="Microsoft Word 9">
<meta name=Originator content="Microsoft Word 9">
<link rel=File-List href="./parameters_files/filelist.xml">
<link rel=Edit-Time-Data href="./parameters_files/editdata.mso">
<!--[if !mso]>
<style>
v\:* {behavior:url(#default#VML);}
o\:* {behavior:url(#default#VML);}
w\:* {behavior:url(#default#VML);}
.shape {behavior:url(#default#VML);}
</style>
<![endif]-->

<title>Web.Link Parameters Test</title>
<!--[if gte mso 9]><xml>
 <o:DocumentProperties>
  <o:Author>Scott Conover</o:Author>
  <o:LastAuthor>Scott Conover</o:LastAuthor>
  <o:Revision>5</o:Revision>
  <o:TotalTime>7</o:TotalTime>
  <o:Created>2002-11-22T15:28:00Z</o:Created>
  <o:LastSaved>2002-11-22T15:46:00Z</o:LastSaved>
  <o:Pages>1</o:Pages>
  <o:Words>151</o:Words>
  <o:Characters>863</o:Characters>
  <o:Company>PTC</o:Company>
  <o:Lines>7</o:Lines>
  <o:Paragraphs>1</o:Paragraphs>
  <o:CharactersWithSpaces>1059</o:CharactersWithSpaces>
  <o:Version>9.3821</o:Version>
 </o:DocumentProperties>
</xml><![endif]-->
<style>
<!--
 /* Style Definitions */
p.MsoNormal, li.MsoNormal, div.MsoNormal
     {mso-style-parent:"";
     margin:0in;
     margin-bottom:.0001pt;
     mso-pagination:widow-orphan;
     font-size:12.0pt;
     font-family:"Times New Roman";
     mso-fareast-font-family:"Times New Roman";}
p
     {margin-right:0in;
     mso-margin-top-alt:auto;
     mso-margin-bottom-alt:auto;
     margin-left:0in;
     mso-pagination:widow-orphan;
     font-size:12.0pt;
     font-family:"Times New Roman";
     mso-fareast-font-family:"Times New Roman";}
@page Section1
     {size:8.5in 11.0in;
     margin:1.0in 1.25in 1.0in 1.25in;
     mso-header-margin:.5in;
     mso-footer-margin:.5in;
     mso-paper-source:0;}
div.Section1
     {page:Section1;}
-->
</style>

<script  src="../jscript/pfcUtils.js">
</script>

<script  src="../jscript/wl_header.js">
</script>

<script>

function WlParametersGet()
//     Get the parameter list from the model or feature.
{
    var ret;
    var FunctionName;
    var ItemType;
     var FeatureID;

    if (document.list_parm.ModelNameExt.value == "")
    {
        return ;
    }
    ItemType = document.pwl.eval(document.list_parm.ParmType.options[
                   document.list_parm.ParmType.selectedIndex].value);
    if (parseInt(ItemType) == parseInt(document.pwlc.PWL_FEATURE))
    {
        if (document.list_parm.FeatureID.value == "")
        {
            return ;
        }

          FeatureID = parseInt(document.list_parm.FeatureID.value);
          if (isNaN (FeatureID))
          {
               alert ("Invalid feature ID!");
               return;
          }
        ret = document.pwl.pwlFeatureParametersGet(
                  document.list_parm.ModelNameExt.value,
                  parseInt(document.list_parm.FeatureID.value));
        FunctionName = "pwlFeatureParametersGet";
    }
    else
    {
          FeatureID = -1;
        ret = document.pwl.pwlMdlParametersGet(
                  document.list_parm.ModelNameExt.value);
        FunctionName = "pwlMdlParametersGet";
    }
    if (!ret.Status)
    {
        alert(FunctionName + " failed (" + ret.ErrorCode + ")");
        return ;
    }
    document.list_parm.Parameters.value = "";
    for (var i = 0; i < ret.NumParams; i++)
    {
        var val_ret = document.pwl.pwlParameterValueGet(
                          document.list_parm.ModelNameExt.value,
                          parseInt(ItemType),
                          FeatureID,
                          ret.ParamNames.Item(i));
        if (!val_ret.Status)
        {
            alert("pwlParameterValueGet failed (" + val_ret.ErrorCode + ")");
            return ;
        }
        var answer = "Undefined";
        if (val_ret.ParamType == parseInt(document.pwlc.PWL_VALUE_DOUBLE))
        {
            answer = val_ret.ParamDoubleVal;
        }
        else if (val_ret.ParamType == parseInt(document.pwlc.PWL_VALUE_STRING))
        {
            answer = val_ret.ParamStringVal;
        }
        else if (val_ret.ParamType == parseInt(document.pwlc.PWL_VALUE_INTEGER))
        {
            answer = val_ret.ParamIntVal;
        }
        else if (val_ret.ParamType == parseInt(document.pwlc.PWL_VALUE_BOOLEAN))
        {
            answer = (val_ret.ParamBooleanVal) ? "true" : "false";
        }
        document.list_parm.Parameters.value += ret.ParamNames.Item(i) + ": " +
                                               answer +"\n";
    }
}

function WlParameterSetValue(FunctionName)
//     Set a parameter or create a new parameter, depending on the function
//      name.
{
    var ItemType;
    var StringValue = document.set_value.Value.value;
    var FloatValue = parseFloat(document.set_value.Value.value);
    var IntValue = parseInt(document.set_value.Value.value);
    var BoolValue = (document.set_value.Value.value.toLowerCase() == "true") ?
                    true : false;
    var ValueType = document.pwl.eval(document.set_value.ValueType.options[
                          document.set_value.ValueType.selectedIndex].value);

    // In order to create usable trail file FloatValue cannot be NaN
    if (isNaN(FloatValue))
    {
        FloatValue = 1.1;
    }
     if (isNaN (IntValue))
     {
          IntValue = -5;
     }

    ItemType = document.pwl.eval(document.set_value.ParmType.options[
                   document.set_value.ParmType.selectedIndex].value);
     if (ItemType == document.pwlc.PWL_MODEL)
          featureID = -1;
     else
          featureID = parseInt(document.set_value.FeatureID.value);

     if (FunctionName == "pwlParameterCreate")
     {

         var ret = document.pwl.pwlParameterCreate (
                  document.set_value.ModelNameExt.value,
                  ItemType,
                  featureID,
                  document.set_value.Parameter.value, ValueType,
                  IntValue, FloatValue, StringValue, BoolValue);
     }
     else
     {
          var ret = document.pwl.pwlParameterValueSet (
                         document.set_value.ModelNameExt.value,
                  ItemType,
                  featureID,
                  document.set_value.Parameter.value, ValueType,
                  IntValue, FloatValue, StringValue, BoolValue);
     }

    if (!ret.Status)
    {
        alert(FunctionName + " failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function WlParameterMisc(FunctionName)
//     Run miscellaneous parameter functions that take only model name,
//     item type, item ID, and parameter name as arguments.
{
    var ItemType;

    ItemType = document.pwl.eval(document.misc_parm.ParmType.options[
                   document.misc_parm.ParmType.selectedIndex].value);
     if (ItemType == document.pwlc.PWL_MODEL)
     {
          FeatureID = -1;
     }
     else
     {
          FeatureID = parseInt(document.misc_parm.FeatureID.value);
          if (isNaN (FeatureID))
               {
                    alert ("Invalid feature id: "+FeatureID);
                    return;
               }
     }
   if (FunctionName == "pwlParameterReset")
     {
         var ret = document.pwl.pwlParameterReset(
                  document.misc_parm.ModelNameExt.value,
                  ItemType,
                  FeatureID,
                  document.misc_parm.Parameter.value);
     }
     else
     {
          var ret = document.pwl.pwlParameterDelete(
                  document.misc_parm.ModelNameExt.value,
                  ItemType,
                  FeatureID,
                  document.misc_parm.Parameter.value);

     }

    if (!ret.Status)
    {
        alert(FunctionName + " failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function WlParameterRename()
//     Rename a parameter.
{
    var ItemType;

    ItemType = document.pwl.eval(document.misc_parm.ParmType.options[
                   document.misc_parm.ParmType.selectedIndex].value);
     if (ItemType == document.pwlc.PWL_MODEL)
     {
          FeatureID = -1;
     }
     else
     {
          FeatureID = parseInt(document.misc_parm.FeatureID.value);
          if (isNaN (FeatureID))
               {
                    alert ("Invalid feature id: "+FeatureID);
                    return;
               }
     }


    var ret = document.pwl.pwlParameterRename(
                  document.misc_parm.ModelNameExt.value,
                  ItemType,
                  FeatureID,
                  document.misc_parm.Parameter.value,
                  document.misc_parm.NewName.value);
    if (!ret.Status)
    {
        alert("pwlParameterRename failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function WlParameterDesignate(FunctionName)
//     Run designate parameter functions that take only the model name
//     and parameter name as arguments and don't return anything.
{
 if (FunctionName == "pwlParameterDesignationAdd")
     {
    var ret = document.pwl.pwlParameterDesignationAdd(
                  document.desg_parm.ModelNameExt.value,
                  document.desg_parm.Parameter.value);
     }
     else
     {
            var ret = document.pwl.pwlParameterDesignationRemove(
                  document.desg_parm.ModelNameExt.value,
                  document.desg_parm.Parameter.value);
     }

    if (!ret.Status)
    {
        alert(FunctionName + " failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function WlParameterVerifyDesignation()
//     Verify that a parameter has been designated.
{
    var ret = document.pwl.pwlParameterDesignationVerify(
                  document.desg_parm.ModelNameExt.value,
                  document.desg_parm.Parameter.value);
    if (!ret.Status)
    {
        alert("pwlParameterDesignationVerify failed (" + ret.ErrorCode + ")");
        return ;
    }
    document.desg_parm.Exist.value = ret.Exists;
}

function NotApplicable(form)
//     Print N\A in the feature ID field when a model is selected.
{
    if (form.ParmType.options[form.ParmType.selectedIndex].value == "PWL_MODEL")
    {
        form.FeatureID.value = "N\\A";
    }
    else if (form.FeatureID.value == "N\\A")
    {
        form.FeatureID.value = "";
    }
}
</script>
<!--[if gte mso 9]><xml>
 <o:shapedefaults v:ext="edit" spidmax="1027"/>
</xml><![endif]--><!--[if gte mso 9]><xml>
 <o:shapelayout v:ext="edit">
  <o:idmap v:ext="edit" data="1"/>
 </o:shapelayout></xml><![endif]-->
</head>

<body lang=EN-US style='tab-interval:.5in'>
<div class=Section1>
<form name="list_parm">
<h4>List Parameters<o:p></o:p></h4>
<div align=center>
<table border=0 cellpadding=0 style='mso-cellspacing:1.5pt;mso-padding-alt:
 0in 0in 0in 0in'>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'><!-- Input arguments -->Model:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'>Display:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'>Feature ID:</p>
  </td>
 </tr>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'>
<INPUT TYPE="text" SIZE="20" NAME="ModelNameExt"><o:p></o:p></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'><SELECT NAME="ParmType"
  onchange="NotApplicable(document.list_parm)">
<OPTION SELECTED VALUE="PWL_MODEL">By Model
<OPTION VALUE="PWL_FEATURE">By Feature ID
</SELECT></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'><INPUT TYPE="text" SIZE="20" NAME="FeatureID" VALUE="N\A"></p>
  </td>
 </tr>
</table>
</div>
<!-- Buttons -->
<p align=center style='text-align:center'>
<input type=button value="Get Parameters" onclick="WlParametersGet()">

<!-- Output arguments -->Parameters:<br>
<TEXTAREA COLS="50" NAME="Parameters"></TEXTAREA></p>
<div class=MsoNormal align=center style='text-align:center'>
<hr size=2 width="100%" align=center>
</div>
</form>
<form name="set_value">
<h4>Create or Set a Parameter<o:p></o:p></h4>
<div align=center>
<table border=0 cellpadding=0 style='mso-cellspacing:1.5pt;mso-padding-alt:
 0in 0in 0in 0in'>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><!-- Input arguments -->Model:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><INPUT TYPE="text" SIZE="20" NAME="ModelNameExt"></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal>Parameter Type:<o:p></o:p></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><SELECT NAME="ParmType"
  onchange="NotApplicable(document.set_value)">
<OPTION SELECTED VALUE="PWL_MODEL">By Model
<OPTION VALUE="PWL_FEATURE">By Feature ID
</SELECT></p>
  </td>
 </tr>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal>Feature ID:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><INPUT TYPE="text" SIZE="20" NAME="FeatureID" VALUE="N\A"></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal>Parameter:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><INPUT TYPE="text" SIZE="20" NAME="Parameter"></p>
  </td>
 </tr>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal>Value Type:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><SELECT NAME="ValueType">
<OPTION VALUE="PWL_VALUE_BOOLEAN">Boolean
<OPTION VALUE="PWL_VALUE_DOUBLE">Double
<OPTION VALUE="PWL_VALUE_INTEGER">Integer
<OPTION VALUE="PWL_VALUE_STRING">String
</SELECT></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal>Value:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal><INPUT TYPE="text" SIZE="20" NAME="Value"></p>
  </td>
 </tr>
</table>
</div>

<!-- Buttons -->
<div class=MsoNormal align=center style='text-align:center'>
<hr size=2 width="100%" align=center>
<input type=button value=Create onclick="WlParameterSetValue('pwlParameterCreate')">
<input type=button value="Set Value" onclick="WlParameterSetValue('pwlParameterValueSet')">
</div>
</form>
<form name="misc_parm">
<h4>Misc Parameters<o:p></o:p></h4>
<div align=center>
<table border=0 cellpadding=0 style='mso-cellspacing:1.5pt;mso-padding-alt:
 0in 0in 0in 0in'>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'><!-- Input arguments -->Model:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'>Display:</p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p align=center style='text-align:center'>Feature ID:</p>
  </td>
 </tr>
 <tr>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'>
<INPUT TYPE="text" SIZE="20" NAME="ModelNameExt"><o:p></o:p></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'><SELECT NAME="ParmType"
  onchange="NotApplicable(document.misc_parm)">
<OPTION SELECTED VALUE="PWL_MODEL">By Model
<OPTION VALUE="PWL_FEATURE">By Feature ID
</SELECT></p>
  </td>
  <td style='padding:.75pt .75pt .75pt .75pt'>
  <p class=MsoNormal align=center style='text-align:center'>
<INPUT TYPE="text" SIZE="20" NAME="FeatureID" VALUE="N\A"></p>
  </td>
 </tr>
</table>
</div>
<p align=center style='text-align:center'>Parameter:
<INPUT TYPE="text" SIZE="20" NAME="Parameter"><o:p></o:p></p>
<p align=center style='text-align:center'><!-- Buttons -->
<input type=button value=Delete onclick="WlParameterMisc('pwlParameterDelete')">
<input type=button value=Reset onclick="WlParameterMisc('pwlParameterReset')">
<input type=button value=Rename onclick="WlParameterRename()">

<!-- Extra input arguments and a button for rename -->New Name:
<INPUT TYPE="text" SIZE="20" NAME="NewName">
<spacer size=20>
<o:p></o:p></p>
<div class=MsoNormal align=center style='text-align:center'>
<hr size=2 width="100%" align=center>
</div>
</form>
<form name="desg_parm">
<h4>Designate Model Parameters<o:p></o:p></h4>
<p align=center style='text-align:center'><!-- Input arguments -->Model:
 <INPUT TYPE="text" SIZE="20" NAME="ModelNameExt">
<spacer size=20>
Parameter: <INPUT TYPE="text" SIZE="20" NAME="Parameter"><o:p></o:p></p>
<p align=center style='text-align:center'><!-- Buttons -->
<input type=button value="Add Designation" onclick=
"WlParameterDesignate('pwlParameterDesignationAdd')">
<input type=button value="Remove Designation" onclick=
"WlParameterDesignate('pwlParameterDesignationRemove')">
<br>
<!-- Extra output arguments and a button for verifying designations -->
<input type=button value="Verify Designation" onclick="WlParameterVerifyDesignation()">
<spacer size=20>
Exists: <INPUT TYPE="text" SIZE="20" NAME="Exist"></p>
<div class=MsoNormal align=center style='text-align:center'>
<hr size=2 width="100%" align=center>
</div>
</form>
</div>
</body>
</html>

The following figures show the results of this example, as seen in the browser. Note that the first figure does not include the standard header. See section JavaScript Header for more information on the wl_header.js header.

Dimensions

This section describes the Web.Link functions that enable you to access and manipulate dimensions in Creo Parametric.

Note

These functions are supported for parts, assemblies, and drawings, but are not supported for sections.

Reading and Modifying Dimensions

Functions Introduced:

pfcScript.pwlMdlDimensionsGet()

pfcScript.pwlFeatureDimensionsGet()

pfcScript.pwlDimensionInfoGetByID()

pfcScript.pwlDimensionInfoGetByName()

pfcScript.pwlDimensionValueSetByID()

To retrieve the dimensions or reference dimensions on a model, use the function pfcScript.pwlMdlDimensionsGet(). The syntax is as follows:

   pwlMdlDimensionsGet (
     string  MdlNameExt,  // The full name of the model
                          // to which the dimensions
                          // belong.
     integer DimType      // The dimension type. Use
                          // parseInt with this argument.
   );
   Additional return fields:
     integer NumDims;     // The number of dimensions.
     integer DimIDs[];    // The dimension identifiers.

The valid values for DimType are PWL_DIMENSION and PWL_REF_DIMENSION, which determine whether the function should retrieve standard (geometry) or reference dimensions, respectively.

The function pfcScript.pwlFeatureDimensionsGet() gets the dimensions for the specified feature. Note that this function does not return any reference dimensions. (Features do not own reference dimensions—the model does.) The syntax is as follows:

   pwlFeatureDimensionsGet (
      string  MdlNameExt,  // The full name of the model
                           // to which the dimensions
                           // belong.
      integer FeatID       // The feature to which the
                           // dimensions belong. Use
                           // parseInt with this argument.
   );
   Additional return fields:
      integer NumDims;     // The number of dimensions.
      integer DimIDs[];    // The dimension identifiers.

Web.Link provides two powerful functions to retrieve information about dimensions— pfcScript.pwlDimensionInfoGetByID() and pfcScript.pwlDimensionInfoGetByName(). The syntax for the functions is as follows:

   pwlDimensionInfoGetByID (
       string  MdlNameExt,    // The full name of the
                              // model to which the
                              // dimension belongs.
       integer DimensionID,   // The integer identifier
                              // of the dimension. Use
                              // parseInt with this
                              // argument.
       integer DimensionType  // The dimension type
                              // (PWL_DIMENSION or
                              // PWL_REF_DIMENSION). Use
                              // parseInt with this
                              // argument.
   );

   pwlDimensionInfoGetByName (
      string   MdlNameExt,    // The full name of the
                              // model to which the
                              // dimension belongs.
      string   DimensionName, // The name of the
                              // dimension.
      integer  DimensionType  // The dimension type
                              // (PWL_DIMENSION or
                              // PWL_REF_DIMENSION). Use
                              // parseInt with this
                              // argument.
   );

Both functions return the following additional fields:

      number  DimValue;   // The value of the dimension
      integer DimID;      // The dimension identifier
      string  DimName;    // The name of the dimension
      integer DimStyle;   // The dimension style
      integer TolType,    // The tolerance type
      number  TolPlus;    // The tolerance amount above
                          // the nominal value
      number  TolMinus    // The tolerance amount below
                          // the nominal value

The possible values for the DimStyle field are as follows:

•

PWL_LINEAR_DIM—Linear dimension

•

PWL_RADIAL_DIM—Radial dimension

•

PWL_DIAMETRICAL_DIM—Diametrical dimension

•

PWL_ANGULAR_DIM—Angular dimension

The possible values for TolType are as follows:

•

PWL_TOL_DEFAULT—Displays the nominal tolerance.

•

PWL_TOL_PLUS_MINUS—Displays the nominal tolerance with a plus/minus.

•

PWL_TOL_LIMITS—Displays the upper and lower tolerance limits.

•

PWL_TOL_PLUS_MINUS_SYM—Displays the tolerance as

+/-x, +/-, where x is the plus tolerance. The value of the minus tolerance is irrelevant and unused.

The function pfcScript.pwlDimensionValueSetByID() enables you to set the value of a dimension. The syntax is as follows:

   pwlDimensionValueSetByID (
      string  MdlNameExt,   // The full name of the model
                            // to which the dimension
                            // belongs.
      integer DimensionID,  // The integer identifier of
                            // the dimension. Use parseInt
                            // with this argument.
      number Value          // The new value of the
                            // dimension. Use parseFloat
                            // with this argument.
   );

The function pfcScript.pwlDimensionValueSetByID() does not require a dimension type because you cannot set reference dimensions.

Note

This function works for solids only (parts, assemblies, and derivative types).

Dimension Tolerance

Function introduced:

pfcScript.pwlDimensionToleranceSetByID()

To set the dimension tolerance, call the function pfcScript.pwlDimensionToleranceSetByID(). The syntax is as follows:

   pwlDimensionToleranceSetByID (
      string  MdlNameExt,  // The full name of the model
                           // to which the dimension
                           // belongs.
      integer DimensionID, // The integer identifier
                           // of the dimension. Use
                           // parseInt with this argument.
      number  TolPlus,     // The positive element of
                           // the tolerance. Use
                           // parseFloat with this
                           // argument.
      number  TolMinus     // The negative element of
                           // the tolerance. Use
                           // parseFloat with this
                           // argument.
   );

Note

This function works for solids only (parts, assemblies, and derivative types).

Dimension Example

The following example shows how to use the Web.Link dimension functions.

<html>
<head>
<title>Web.Link Dimensions Test</title>

<script src="../jscript/pfcUtils.js">
</script>
<script src="../jscript/wl_header.js">
document.writeln ("Error loading Web.Link header!");
</script>

<script language="JavaScript">
function WlDimensionGet()
//     Gets the dimensions, reference dimensions, or feature dimensions.
{
    var ret;
    var FunctionName;
    var DimType;

    if (document.list_dim.ModelNameExt.value == "")
    {
        return ;
    }

    if (document.list_dim.DimType.options[
            document.list_dim.DimType.selectedIndex].value == "BY_FEATURE")
    {
        if (document.list_dim.FeatureID.value == "")
        {
            return ;
        }
           FeatureID = parseInt (document.list_dim.FeatureID.value);
           if (isNaN (FeatureID))
               {
                    alert ("Feature ID invalid: "+document.list_dim.FeatureID.value);
                    return;
               }
        ret = document.pwl.pwlFeatureDimensionsGet(
                  document.list_dim.ModelNameExt.value,
                  FeatureID);
        FunctionName = "pwlFeatureDimensionsGet";
        DimType = document.pwlc.PWL_DIMENSION_STANDARD;
    }
    else
    {
           DimType = document.pwl.eval(document.list_dim.DimType.options[
                              document.list_dim.DimType.selectedIndex].value);
           if (isNaN (DimType) || DimType == -10001)
               {
                    alert ("Could not recognize dim type");
               }
/*
          if (DimType == document.pwlc.PWL_DIMENSION_STANDARD)
          {
               pfcDimType = 10;  // pfcITEM_DIMENSION
          }
          else
          {
               pfcDimType = 11;  // pfcITEM_REF_DIMENSION
          }

        var s = glob.GetProSession ();

          var m = s.GetModelFromFileName (document.list_dim.ModelNameExt.value);

          if (m == void null)
          {
               alert ("Couldn't find model: "+document.list_dim.ModelNameExt.value);
               return;
          }
          var items = m.ListItems (pfcDimType);
          if (items == void null)
          {
               alert ("Model items were null!");
               return;
          }
          if (items.Count == 0)
          {
               alert ("Empty items!");
          }
          else
               alert ("Items :" + items.Count);
     }
*/
            ret = document.pwl.pwlMdlDimensionsGet(
                  document.list_dim.ModelNameExt.value,
                  DimType);
        FunctionName = "pwlMdlDimensionsGet";
    }
    if (!ret.Status)
    {
        alert(FunctionName + " failed (" + ret.ErrorCode + "): " + ret.ErrorString);
        return ;
    }
    document.list_dim.DimValues.value = "";
      for (var i = 0; i < ret.NumDims; i++)
    {
        var info_ret = document.pwl.pwlDimensionInfoGetByID(
                           document.list_dim.ModelNameExt.value,
                           ret.DimIDs.Item(i), DimType);
        if (!info_ret.Status)
        {
            alert("pwlDimensionInfoGetByID failed (" + info_ret.ErrorCode +
                  ")");
            return ;
        }
        document.list_dim.DimValues.value += info_ret.DimName + " (#" +
            info_ret.DimID + "):  " + info_ret.DimValue +
            ((info_ret.DimStyle == parseInt(document.pwlc.PWL_ANGULAR_DIM)) ?
             " degrees" : "") + " (-" + info_ret.TolMinus + "/+" +
            info_ret.TolPlus + ")\n";
    }
}

function WlDimensionGetByName()
//     Gets a dimension by name.
{
    if (document.get_value_name.ModelNameExt.value == "" ||
        document.get_value_name.DimName.value == "")
    {
        return ;
    }
    var DimType = document.pwl.eval(document.get_value_name.DimType.options[
                        document.get_value_name.DimType.selectedIndex].value);
     if (isNaN (DimType) || DimType == -10001)
               {
                    alert ("Could not recognize dim type");
               }
    var ret = document.pwl.pwlDimensionInfoGetByName(
                  document.get_value_name.ModelNameExt.value,
                  document.get_value_name.DimName.value,
                  DimType);
    if (!ret.Status)
    {
        alert("pwlDimensionInfoGetByName failed (" + ret.ErrorCode + ")");
        return ;
    }
    document.get_value_name.DimValue.value = ret.DimName + " (#" +
        ret.DimID + "):  " + ret.DimValue +
        ((ret.DimStyle == parseInt(document.pwlc.PWL_ANGULAR_DIM)) ?
         " degrees" : "") + " (-" + ret.TolMinus + "/+" + ret.TolPlus + ")";
}

function WlDimensionSetByID()
//     Sets the value of a dimension.
{
    if (document.set_value_id.ModelNameExt.value == "" ||
        document.set_value_id.DimID.value == "" ||
        document.set_value_id.DimValue.value == "")
    {
        return ;
    }
     DimensionID = parseInt(document.set_value_id.DimID.value);
     if (isNaN (DimensionID))
     {
          alert ("Invalid dimension id: "+document.set_value_id.DimID.value);
          return;
     }

     DimensionValue = parseFloat(document.set_value_id.DimValue.value);
     if (isNaN (DimensionValue))
     {
          alert ("Invalid dimension value: "+document.set_value_id.DimValue.value);
          return;
     }


    var ret = document.pwl.pwlDimensionValueSetByID(
                  document.set_value_id.ModelNameExt.value,
                  DimensionID,
                  DimensionValue);
    if (!ret.Status)
    {
        alert("pwlDimensionValueSetByID failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function WlDimensionSetToleranceByID()
//     Sets the tolerance of a dimension.
{
    var ret = document.pwl.pwlDimensionToleranceSetByID(
                  document.set_tol.ModelNameExt.value,
                  parseInt(document.set_tol.DimID.value),
                  parseFloat(document.set_tol.TolPlus.value),
                  parseFloat(document.set_tol.TolMinus.value));
    if (!ret.Status)
    {
        alert("pwlDimensionValueToleranceByID failed (" + ret.ErrorCode + ")");
        return ;
    }
}

function NotApplicable(form)
//     Prints N\A in the feature ID field when a model is selected.
{
    if (form.DimType.options[form.DimType.selectedIndex].value != "BY_FEATURE")
    {
        form.FeatureID.value = "N\\A";
    }
    else if (form.FeatureID.value == "N\\A")
    {
        form.FeatureID.value = "";
    }
}

</script>
</head>
<body>
<form name="list_dim">
  <h4>List Dimensions</h4>
  <div align="center"><center><p><!-- Input arguments --> </p>
  </center></div><div align="center"><center><table>
    <tr>
      <td><div align="center"><center><p>Model:</td>
      <td align="center"><div align="center"><center><p>Display:</td>
      <td align="center"><div align="center"><center><p>Feature ID:</td>
    </tr>
    <tr align="center">
      <td><input type="text" name="ModelNameExt" size="20"></td>
      <td><select name="DimType" onchange="NotApplicable(document.list_dim)" size="1">
        <option value="PWL_DIMENSION_STANDARD" selected>Dimensions</option>
        <option value="PWL_DIMENSION_REFERENCE">Reference Dimensions</option>
        <option value="BY_FEATURE">By Feature ID</option>
      </select></td>
      <td><input type="text" name="FeatureID" value="N\A" size="20"></td>
    </tr>
  </table>
  </center></div><!-- Buttons -->
<div align="center"><center><p><input type="button" value="Get Dimensions"
  onclick="WlDimensionGet()"></p>
  </center></div><div align="center"><center><p><!-- Output arguments --> Dimensions:<br>
  <textarea name="DimValues" rows="4" cols="50"></textarea> </p>
  </center></div><hr align="center">
</form>
<form name="get_value_name">
  <h4>Get Dimension Value by Name</h4>
  <div align="center"><center><p><!-- Input arguments --> </p>
  </center></div><div align="center"><center><table>
    <tr>
      <td><div align="center"><center><p>Model:</td>
      <td align="center"><div align="center"><center><p>Dimension Name:</td>
      <td align="center"><div align="center"><center><p>Type:</td>
    </tr>
    <tr align="center">
      <td><input type="text" name="ModelNameExt" size="20"></td>
      <td><input type="text" name="DimName" size="20"></td>
      <td><select name="DimType" size="1">
        <option value="PWL_DIMENSION_STANDARD" selected>Dimensions</option>
        <option value="PWL_DIMENSION_REFERENCE">Reference Dimensions</option>
      </select></td>
    </tr>
  </table>
  </center></div><!-- Buttons -->
<div align="center"><center><p><input type="button"
  value="Get Dimension Value" onclick="WlDimensionGetByName()"></p>
  </center></div><div align="center"><center><p><!-- Output arguments -->
Value: <input type="text" name="DimValue"
  size="20"> </p>
  </center></div><hr align="center">
</form>
<form name="set_value_id">
  <h4>Set Dimension Value by ID</h4>
  <div align="center"><center><p><!-- Input arguments --> </p>
  </center></div><div align="center"><center><table>
    <tr>
      <td><div align="center"><center><p>Model:</td>
      <td align="center"><div align="center"><center><p>Dimension ID:</td>
      <td align="center"><div align="center"><center><p>Value:</td>
    </tr>
    <tr align="center">
      <td><input type="text" name="ModelNameExt" size="20"></td>
      <td><input type="text" name="DimID" size="20"></td>
      <td><input type="text" name="DimValue" size="20"></td>
    </tr>
  </table>
  </center></div><!-- Buttons -->
<div align="center"><center><p><input type="button"
  value="Set Dimension Value" onclick="WlDimensionSetByID()"> </p>
  </center></div><hr align="center">
</form>
<form name="set_tol">
  <h4>Set Dimension Tolerance by ID</h4>
  <div align="center"><center><p><!-- Input arguments --> </p>
  </center></div><div align="center"><center><table>
    <tr>
      <td>Model:</td>
      <td><input type="text" name="ModelNameExt" size="20"></td>
      <td>Dimension ID:</td>
      <td><input type="text" name="DimID" size="20"></td>
    </tr>
    <tr>
      <td>Plus Tolerance:</td>
      <td><input type="text" name="TolPlus" size="20"></td>
      <td>Minus Tolerance:</td>
      <td><input type="text" name="TolMinus" size="20"></td>
    </tr>
  </table>
  </center></div><!-- Buttons -->
<div align="center"><center><p><input type="button"
  value="Set Dimension Tolerance" onclick="WlDimensionSetToleranceByID()"> </p>
  </center></div><hr>
</form>
</body>
</html>

The following figures show the results of this example, as seen in the browser. Note that the first figure does not include the standard header. Refer to the section JavaScript Header for more information on the wl_header.js header.

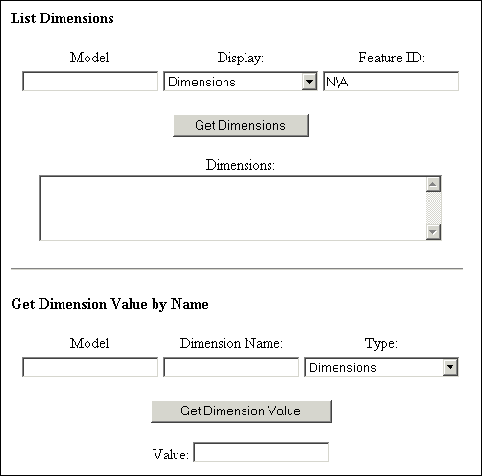

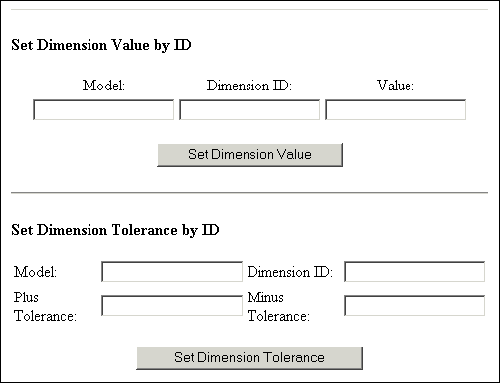

Simplified Representations

This section describes the Web.Link functions that enable you to access and manipulate simplified representations.

Retrieving Simplified Representations

Functions Introduced:

pfcScript.pwlSimprepOpen()

pfcScript.pwlGraphicsSimprepOpen()

pfcScript.pwlGeomSimprepOpen()

pfcScript.pwlMdlSimprepsGet()

The function pfcScript.pwlSimprepOpen() opens the specified simplified representation. The syntax is as follows:

   pwlSimprepOpen (
      string  AsmNameExt,       // The full name of
                                // the part or assembly.
      string  Path,             // The full path to the
                                // model.
      string  RepName,          // The name of
                                // the simplified
                                // representation.
      boolean DisplayInWindow   // If this is true,
                                // display the simplified
                                // representation in a
                                // window.
   );
   Additional return field:
      integer WindowID;         // The identifier of
                                // the window in which
                                // the simplified
                                // representation is
                                // displayed.

There is a difference between opening a simplified representation and activating it. Opening a simplified representation requires Creo Parametric to read from the disk and open the appropriate representation of the specified model. Activating a simplified representation does not require Creo Parametric to read from the disk because the model containing the simplified representation is already open. This operation is analogous to the Creo Parametric operation of setting a view to be current (the model is already in session; only the model display changes).

The function pfcScript.pwlGraphicsSimprepOpen() retrieves the graphics of the specified assembly. The syntax is as follows:

   pwlGraphicsSimprepOpen (
      string  AsmNameExt,        // The full name of the
                                 // part or assembly
      string  Path,              // The full path to the
                                 // model
      boolean DisplayInWindow    // Specifies whether to
                                 // display the simplified
                                 // representation in a
                                 // window
   );
   Additional return field:
      integer WindowID;          // The identifier of the
                                 // window in which
                                 // the simplified
                                 // representation is
                                 // displayed

The pfcScript.pwlGeomSimprepOpen() function provides the geometry of the specified part or assembly. The syntax is as follows:

   pwlGeomSimprepOpen (
      string  AsmNameExt,        // The full name of
                                 // the part or assembly
      string  Path,              // The full path to
                                 // the model
      boolean DisplayInWindow    // Specifies whether to
                                 // display the simplified
                                 // representation in a
                                 // window
   );
   Additional return field:
      integer WindowID;          // The identifier of the
                                 // window in which
                                 // the simplified
                                 // representation is
                                 // displayed

If you try to open a model that already exists in memory, the open functions ignore the Path argument.

Note

The open functions will successfully open the simplified representation that is in memory—even if the specified Path is incorrect.

Use the function pfcScript.pwlMdlSimprepsGet() to list all the simplified representations in the specified model. The syntax is as follows:

   pwlMdlSimprepsGet (
      string  MdlNameExt     // The full name of the model
   );
   Additional return fields:
      integer NumSimpreps;   // The number of simplified
                             // representations
      string  Simpreps[];    // The list of simplified
                             // representations

Activating Simplified Representations

Functions Introduced:

pfcScript.pwlSimprepActivate()

pfcScript.pwlSimprepMasterActivate()

pfcScript.pwlGeomSimprepActivate()

pfcScript.pwlGraphicsSimprepActivate()

The function pfcScript.pwlSimprepActivate() activates the specified simplified representation. The syntax is as follows:

   pwlSimprepActivate (
      string  MdlNameExt,   // The full name of the model
      string  SimprepName   // The name of the simplified
                            // representation
   );

To activate the master simplified representation, call the function pfcScript.pwlSimprepMasterActivate(). The syntax is as follows:

   pwlSimprepMasterActivate (
      string  MdlNameExt    // The full name of the model
   );

The function pfcScript.pwlGeomSimprepActivate() activates the geometry simplified representation of the specified model. The syntax is as follows:

   pwlGeomSimprepActivate (
      string  MdlNameExt    // The full name of the model
   );

The pfcScript.pwlGraphicsSimprepActivate() function activates the graphics simplified representation of the specified model. The syntax is as follows:

   pwlGraphicsSimprepActivate (
      string  MdlNameExt    // The full name of the model
   );

Solids

This section describes the Web.Link functions that enable you to access and manipulate solids and their contents.

Mass Properties

Function introduced:

pfcScript.pwlSolidMassPropertiesGet()

The function pfcScript.pwlSolidMassPropertiesGet() provides information about the distribution of mass in the specified part or assembly. It can provide the information relative to a coordinate system datum, which you name, or the default one if you provide an empty string or null as the name. The syntax is as follows:

   pwlSolidMassPropertiesGet (
      string  MdlNameExt,          // The full name of
                                   // the model.
      string  CoordinateSys        // The coordinate
                                   // system used to get
                                   // the mass properties.
   );
   Additional return fields:
      number  Volume;              // The volume.
      number  SurfaceArea;         // The surface area.
      number  Density;             // The density. The
                                   // density value is
                                   // 1.0, unless a
                                   // material has been
                                   // assigned.
      number  Mass;                // The mass.
      number  CenterOfGravity[3];  // The center of
                                   // gravity (COG).
      number  Inertia[9];          // The inertia matrix.
      number  InertiaTensor[9];    // The inertia tensor.
      number  CogInertiaTensor[9]; // The inertia about
                                   // the COG.
      number  PrincipalMoments[3]; // The principal
                                   // moments of inertia
                                   // (the eigenvalues
                                   // of the COG inertia).
      number  PrincipalAxes[9];    // The principal
                                   // axes (the
                                   // eigenvectors of
                                   // the COG inertia).

Cross Sections

Functions Introduced:

pfcScript.pwlSolidXSectionDisplay()

pfcScript.pwlSolidXSectionsGet()

To display a cross section, use the function pfcScript.pwlSolidXSectionDisplay(). The syntax is as follows:

   pwlSolidXSectionDisplay (
      string  MdlNameExt,        // The full name of
                                 // the model
      string  CrossSectionName   // The name of the
                                 // cross section to
                                 // display
   );

The function pfcScript.pwlSolidXSectionsGet() returns all the cross sections on the specified part or assembly. The syntax is as follows:

   pwlSolidXSectionsGet (
      string  MdlNameExt           // The full name of the
                                   // model (part or
                                   // assembly)
   );
   Additional return fields:
      integer NumCrossSections;    // The number of cross
                                   // sections
      string  CrossSectionNames[]; // The names of the
                                   // cross sections

Family Tables

This section describes the Web.Link functions that enable you to access and manipulate family tables.

Overview

Family table functions are divided into three groups, distinguished by the prefix of the function name:

•

pwlFamtabItem—Functions that modify table-driven items

•

pwlFamtabInstance—Functions that modify an instance in the family table

•

pwlInstance—Functions that perform file-management operations for family table instances

The following sections describe these functional groups in detail.

Family Table Items

Functions Introduced:

pfcScript.pwlFamtabItemsGet()

pfcScript.pwlFamtabItemAdd()

pfcScript.pwlFamtabItemRemove()

Every item in a family table is uniquely identified by two values—its name and the family item type. The following table lists the possible values of the family item type.

Constant	Description
PWL_FAM_USER_PARAM	A user-defined parameter
PWL_FAM_DIMENSION	A dimension
PWL_FAM_IPAR_NOTE	A parameter in a pattern
PWL_FAM_FEATURE	A feature
PWL_FAM_ASMCOMP	A single instance of a component in an assembly
PWL_FAM_UDF	A user-defined feature
PWL_FAM_ASMCOMP_MODEL	All instances of a component in an assembly
PWL_FAM_GTOL	A geometric tolerance
PWL_FAM_TOL_PLUS	The plus value of a tolerance
PWL_FAM_TOL_MINUS	The minus value of a tolerance
PWL_FAM_TOL_PLUSMINUS	A tolerance
PWL_FAM_SYSTEM_PARAM	A system parameter
PWL_FAM_EXTERNAL_REFERENCE	An external reference

The function pfcScript.pwlFamtabItemsGet() returns a list of all the table-driven elements currently in the family table. The syntax is as follows:

   pwlFamtabItemsGet (
      string MdlNameExt       // The full name of the
                              // model
   );
   Additional return fields:
      integer    NumItems;        // The number of items
      integer    FamItemTypes[];  // The types of items
      string Items[];         // The list of table-driven
                              // elements

The first item in the table would have the item type FamItemTypes[0] and name Items[0]. Similar correspondence between the two arrays exist for every item in the table.

To add or remove items from a family table, use the functions pfcScript.pwlFamtabItemAdd() and pwlFamtabItemRemove(), respectively. The syntax of the functions is as follows:

   pwlFamtabItemAdd (
       string  MdlNameExt,  // The full name of the model.
       integer FamItemType, // The type of family item.
                            // Use parseInt with this
                            // argument.
       string  Name         // The name of the item to add.
   );

   pwlFamtabItemRemove (
       string  MdlNameExt,  // The full name of the
                            // model.
       integer FamItemType, // The type of family item.
                            // Use parseInt with this
                            // argument.
       string  Name         // The name of the item to
                            // remove.
   );

Adding and Deleting Family Table Instances

Functions Introduced:

pfcScript.pwlFamtabInstancesGet()

pfcScript.pwlFamtabInstanceAdd()

pfcScript.pwlFamtabInstanceRemove()

To get a list of all the instances of a generic, call the function pfcScript.pwlFamtabInstancesGet(). The syntax is as follows:

   pwlFamtabInstancesGet (
      string  MdlNameExt       // The full name of the
                                 model
   );
   Additional return fields:
      integer NumInstances;    // The number of instances
      string  InstanceNames[]; // The names of the
                               // instances

The function pfcScript.pwlFamtabInstanceAdd() creates a new instance. The syntax is as follows:

   pwlFamtabInstanceAdd (
      string MdlNameExt,   // The full name of the model
      string Name          // The name of the instance
                           // to add
   );

Initially, a new instance will have all asterisks in the family table, making it equal to the generic.

To remove an existing instance from a family table, call the function pfcScript.pwlFamtabInstanceRemove(). The syntax is as follows:

   pwlFamtabInstanceRemove (
      string MdlNameExt,   // The full name of the model
      string Name          // The name of the instance to
                           // remove
   );

If the instance has been opened, the object continues to exist but will no longer be associated with the family table.

Family Table Instance Values

Functions Introduced:

pfcScript.pwlFamtabInstanceValueGet()

pfcScript.pwlFamtabInstanceValueSet()

The function pfcScript.pwlFamtabInstanceValueGet() provides the value for the specified instance and item. The syntax is as follows:

   pwlFamtabInstanceValueGet (
      string  MdlNameExt,   // The full name of the
                            // model.
      string  Name,         // The name of the instance.
      integer FamItemType,  // The type of family item.
                            // Use parseInt with this
                            // argument.
      string  ItemName      // The name of the item.
   );
   Additional return fields:
      integer ValueType;    // Specifies which value
                            // argument to use.
      integer IntVal;       // The integer value.
      number  DoubleVal;    // The number value.
      string  StringVal;    // The string value.
      boolean BooleanVal;   // The Boolean value.

The function returns five additional fields, but only two will be set to anything. The field ValueType is always set and its value determines what other field should be used, according to the following table.

Value of the ValueType	Additional Field Used
PWL_VALUE_INTEGER	IntVal
PWL_VALUE_DOUBLE	DoubleVal
PWL_VALUE_STRING	StringVal
PWL_VALUE_BOOLEAN	BooleanVal

Setting the value of an instance item using the function pfcScript.pwlFamtabInstanceValueSet() requires several arguments to allow for all the possibilities. The syntax is as follows:

   pwlFamtabInstanceValueSet (
      string  MdlNameExt,   // The full name of the
                            // model.
      string  Name,         // The name of the instance.
      integer FamItemType,  // The type of the family
                            // table item. Use parseInt
                            // with this argument.
      string  ItemName,     // The name of the item.
      integer ValueType,    // Specifies which value
                            // argument to use. Use
                            // parseInt with this
                            // argument.
      integer IntVal,       // The integer value. Use
                            // parseInt with this
                            // argument.
      number  DoubleVal,    // The number value. Use
                            // parseFloat with this
                            // argument.
      string  StringVal,    // The string value.
      boolean BooleanVal    // The Boolean value.
   );

Locking Family Table Instances

Functions Introduced:

pfcScript.pwlFamtabInstanceLockGet()

pfcScript.pwlFamtabInstanceLockAdd()

pfcScript.pwlFamtabInstanceLockRemove()

The function pfcScript.pwlFamtabInstanceLockGet() determines whether the specified model is locked for modification. The function returns this information in the Boolean field Locked. A locked instance cannot be modified. The syntax is as follows:

   pwlFamtabInstanceLockGet (
      string  MdlNameExt,   // The full name of the model.
      string  Name          // The name of the instance.
   );
   Additional return fields:
      boolean Locked;       // If this is true, the model
                            // is locked for modification.

To add a lock, call the function pfcScript.pwlFamtabInstanceLockAdd(). The syntax is as follows:

   pwlFamtabInstanceLockAdd (
      string MdlNameExt,   // The full name of the model
      string Name          // The name of the instance
                           // to which to add the lock
   );

Call the function pfcScript.pwlFamtabInstanceLockRemove() to remove the specified lock. The syntax is as follows:

   pwlFamtabInstanceLockRemove (
      string MdlNameExt,   // The full name of the model
      string Name          // The name of the instance
                           // from which to remove the
                           // lock
   );

File Management Functions for Instances

Functions Introduced:

pfcScript.pwlInstanceOpen()

pfcScript.pwlInstanceErase()

The function pfcScript.pwlInstanceOpen() enables you to open an instance in a manner similar to pfcScript.pwlMdlOpen(). The syntax is as follows:

   pwlInstanceOpen (
      string  MdlNameExt,     // The full name of the
                              // model.
      string  InstanceName,   // The name of the instance
                              // to open.
      boolean DisplayInWindow // If this is true, display
                              // the instance in a window.
   );
   Additional return fields:
      integer WindowID;       // The identifier of the
                              // window in which the
                              // instance is displayed.

The generic must already reside in memory. The Boolean argument determines whether the instance should be displayed. If the instance is to be displayed in a window, the function returns the additional field, WindowID.

To erase an instance from memory, use the function pfcScript.pwlInstanceErase(). The syntax is as follows:

   pwlInstanceErase (
      string MdlNameExt,  // The full name of the model
      string Name         // The name of the instance to
                          // erase from memory
);

Layers

This section describes the Web.Link functions that enable you to access and manipulate layers.

Layer Functions

Functions Introduced:

pfcScript.pwlMdlLayersGet()

pfcScript.pwlLayerCreate()

pfcScript.pwlLayerDelete()

pfcScript.pwlLayerDisplayGet()

pfcScript.pwlLayerDisplaySet()

pfcScript.pwlLayerItemsGet()

pfcScript.pwlLayerItemAdd()

pfcScript.pwlLayerItemRemove()

The function pfcScript.pwlMdlLayersGet() provides the number and a list of all the layers in the specified model. The syntax is as follows:

   pwlMdlLayersGet (
      string  MdlNameExt     // The full name of the model
   );
   Additional return fields:
      integer NumLayers;     // The number of layers in
                             // the returned array
      string  LayerNames[];  // The array of layer names

The function pfcScript.pwlLayerCreate() enables you to create a new layer. The syntax is as follows:

   pwlLayerCreate (
      string MdlNameExt,  // The full name of the model
      string LayerName    // The name of the layer to
                          // create
   );

To delete a layer, call the function pfcScript.pwlLayerDelete().

The syntax is as follows:

   pwlLayerDelete (
      string MdlNameExt,  // The full name of the model
      string LayerName    // The name of the layer to
                          // delete
   );

The function pfcScript.pwlLayerDisplayGet() provides the display type of the specified layer. The syntax is as follows:

   pwlLayerDisplayGet (
      string  MdlNameExt,   // The full name of the model
      string  LayerName     // The name of the layer
   );
   Additional return field:
      integer DisplayType;  // The display type

The valid values for DisplayType are as follows:

•

PWL_DISPLAY_TYPE_NORMAL—A normal layer.

•

PWL_DISPLAY_TYPE_DISPLAY—A layer selected for display.

•

PWL_DISPLAY_TYPE_BLANK—A blanked layer.

•

PWL_DISPLAY_TYPE_HIDDEN—A hidden layer. This applies to Assembly mode only.

To set the display type of a layer, use the function pfcScript.pwlLayerDisplaySet(). The syntax is as follows:

   pwlLayerDisplaySet (
      string  MdlNameExt,  // The full name of the model.
      string  LayerName,   // The name of the layer.
      integer DisplayType  // The new display type. Use
                           // parseInt with this argument.
   );

The function pfcScript.pwlLayerItemsGet() lists the items assigned to the specified layer. The syntax is as follows:

   pwlLayerItemsGet (
      string   MdlNameExt,   // The full name of the model
      string   LayerName     // The name of the layer
   );
   Additional return fields:
      integer  NumItems;     // The number of items in
                             // ItemIDs
      ItemType ItemTypes[];  // The array of item types
      integer  ItemIDs[];    // The array of item
                             // identifiers
      string   ItemOwners[]; // The array of item owners

The possible values for ItemType are as follows:

•

PWL_PART

•

PWL_FEATURE

•

PWL_DIMENSION

•

PWL_REF_DIMENSION

•

PWL_GTOL

•

PWL_ASSEMBLY

•

PWL_QUILT

•

PWL_CURVE

•

PWL_POINT

•

PWL_NOTE

•

PWL_IPAR_NOTE

•

PWL_SYMBOL_INSTANCE

•

PWL_DRAFT_ENTITY

•

PWL_DIAGRAM_OBJECT

To add an item to a layer, call the function pfcScript.pwlLayerItemAdd(). The syntax is as follows:

   pwlLayerItemAdd (
      string  MdlNameExt, // The full name of the model.
      string  LayerName,  // The name of the layer.
      integer ItemType,   // The type of layer item. Use
                          // parseInt with this
                          // argument.
      integer ItemID,     // The identifier of the item
                          // to add. Use parseInt with
                          // this argument.
      string  ItemOwner   // The owner of the item.
   );

If ItemOwner is null or an empty string, the item owner is the same as the layer. Otherwise, it is a selection string to the component that owns the item.

To delete an item from a layer, call the function pfcScript.pwlLayerItemRemove(). The syntax is as follows:

   pwlLayerItemRemove (
      string  MdlNameExt, // The full name of the model.
      string  LayerName,  // The name of the layer.
      integer ItemType,   // The type of layer item. Use
                          // parseInt with this
                          // argument.
      integer ItemID,     // The identifier of the item
                          // to remove. Use parseInt
                          // with this argument.
      string  ItemOwner   // The item owner. If this is
                          // null or an empty string,
                          // the item owner is the same
                          // as the layer. Otherwise,
                          // it is a selection string
                          // to the component that
                          // owns the item.
   );

Notes

This section describes the Web.Link functions that enable you to access the notes created in Creo Parametric.

Notes Inquiry

Functions Introduced:

pfcScript.pwlMdlNotesGet()

pfcScript.pwlFeatureNotesGet()

pfcScript.pwlNoteOwnerGet()

The function pfcScript.pwlMdlNotesGet() returns the number and a list of all the note identifiers in the specified model. The syntax is as follows:

   pwlMdlNotesGet (
      string  MdlNameExt    // The full name of the model
   );
   Additional return fields:
      integer NumNotes;     // The number of notes in
                            // the array NoteIDs
      integer NoteIDs[];    // The array of note
                            // identifiers

The function pfcScript.pwlFeatureNotesGet() provides the number and a list of all the note identifiers for the specified feature in the model. Note that this function does not apply to drawings. The syntax is as follows:

   pwlFeatureNotesGet (
      string  MdlNameExt,   // The full name of the model.
      integer FeatureID     // The feature whose notes
                            // should be found. Use
                            // parseInt with this
                            // argument.
   );
   Additional return fields:
      integer NumNotes;     // The number of notes in
                            // the array NoteIDs.
      integer NoteIDs[];    // The array of note
                            // identifiers.

The pfcScript.pwlNoteOwnerGet() function gets the owner of the specified note. The syntax is as follows:

   pwlNoteOwnerGet (
      string  MdlNameExt,   // The full name of the
                            // model.
      integer NoteID        // The identifier of the
                            // note whose owner you want.
                            // Use parseInt with this
                            // argument.
   );
   Additional return fields:
      integer ItemType;      // The item type.
      integer NoteOwnerID;   // The identifier of the
                             // note’s owner. This
                             // field is not applicable
                             // if ItemType is PWL_MODEL.

Note

•

You cannot modify the owner of the note.

•

The function pfcScript.pwlNoteOwnerGet() does not apply to drawings.

Note Names

Functions Introduced:

pfcScript.pwlNoteNameGet()

pfcScript.pwlNoteNameSet()

The pfcScript.pwlNoteNameGet() function returns the name of the specified note, given its identifier. The syntax is as follows:

   pwlNoteNameGet (
      string  MdlNameExt,  // The full name of the model.
      integer NoteID       // The note identifier. Use
                           // parseInt with this
                           // argument.
   );
   Additional return field:
     string   NoteName;    // The name of the note.

To set the name of a note, call the function pfcScript.pwlNoteNameSet(). The syntax is as follows:

   pwlNoteNameSet (
      string  MdlNameExt,   // The full name of the model.
      integer NoteID,       // The note identifier. Use
                            // parseInt with this
                            // argument.
      string  NewName       // The new name of the note.
   );

Note

These functions do not apply to drawings.

Note Text

Functions Introduced:

pfcScript.pwlNoteTextGet()

pfcScript.pwlNoteTextSet()

The function pfcScript.pwlNoteTextGet() returns the number of lines and the text strings for the specified note in the model. Symbols are replaced by an asterisk (*). The syntax is as follows:

   pwlNoteTextGet (
      string  MdlNameExt,   // The full name of the model.
      integer NoteID        // The note identifier. Use
                            // parseInt with this
                            // argument.
   );
   Additional return fields:
      integer NumTextLines; // The number of lines of
                            // text in the note.
      string  NoteText[];   // The text of the note.

To set the text of a note, call the function pfcScript.pwlNoteTextSet(). This function supports standard ASCII characters only. The syntax is as follows:

   pwlNoteTextSet (
      string  MdlNameExt,    // The full name of the
                             // model.
      integer NoteID,        // The note identifier. Use
                             // parseInt with this
                             // argument.
      integer NumTextLines,  // The number of lines of
                             // text in the note. Use
                             // parseInt with this
                             // argument.
      string  NewNoteText[]  // The text of the new note.
   );

Note

You cannot set symbols.

Note URLs

Functions Introduced:

pfcScript.pwlNoteURLGet()

pfcScript.pwlNoteURLSet()

The pfcScript.pwlNoteURLSet() provides the Uniform Resource Locator (URL) of the specified note, given its identifier. The syntax is as follows:

   pwlNoteURLGet (
      string  MdlNameExt,  // The full name of the model.
      integer NoteID       // The note identifier. Use
                           // parseInt with this argument.
   );
   Additional return field:
      string  NoteURL;     // The URL of the note.

To set the URL, call the function pfcScript.pwlNoteURLSet(). The syntax is as follows:

   pwlNoteURLSet (
      string  MdlNameExt,  // The full name of the model.
      integer NoteID,      // The note identifier. Use
                           // parseInt with this argument.
      string  NoteURL      // The URL of the note.
   );

Note

These functions do not apply to drawings.

Utilities

This section describes the utility functions provided by the old Web.Link module. The utility functions enable you to manipulate directories and arrays, and to get the value of a given environment variable.

Environment Variables

Function introduced:

pfcScript.pwlEnvVariableGet()

The function pfcScript.pwlEnvVariableGet() returns the value of the specified environment variable. The syntax is as follows:

   pwlEnvVariableGet (
      string  VarName   // The name of the environment
                        // variable whose value you want
   );
      Additional return field:
      string  Value;    // The value

The following code fragment shows how to get the value of the environment variable NPX_PLUGIN_PATH.

<SCRIPT language = "JavaScript">
.

function EnvVar()
{
  ret = document.pwl.pwlEnvVariableGet ("NPX_PLUGIN_PATH");

  if (ret.Status)
  {
     document.ui.RETVAL.value = "Success: Value is " + ret.Value;
  }
  else
  {
     document.ui.RETVAL.value = stat.ErrorCode+": " + ret.ErrorString;
  }
}
</script>

Manipulating Directories

Functions Introduced:

pfcScript.pwlDirectoryCurrentGet()

pfcScript.pwlDirectoryCurrentSet()

pfcScript.pwlDirectoryFilesGet()

The function pfcScript.pwlDirectoryCurrentGet() provides the path to the current directory. The syntax is as follows:

   pwlDirectoryCurrentGet();
   Additional return field:
      string  DirectoryPath;    // The path to the
                                // current directory

The pfcScript.pwlDirectoryCurrentSet() function sets the current directory to the one specified by the argument DirectoryPath. The syntax is as follows:

   pwlDirectoryCurrentSet (
      string  DirectoryPath     // The directory to make
                                // current
   );

The function pfcScript.pwlDirectoryFilesGet() lists the files and subdirectories for the specified directory. Note that you can pass a filter to get only those files that have the specified extensions. The function returns the number of files found and a list of file names. The syntax is as follows:

   pwlDirectoryFilesGet (
      string  DirectoryPath, // The directory whose
                             // files and subdirectories
                             // you want to find. If this
                             // is null, the function
                             // lists the files in the
                             // current Creo Parametric
                             // directory.
      string  Filter         // The filter string for the
                             // file extensions,
                             // separated by commas. For
                             // example. "*.prt," "*.txt".
                             // If this is null, the
                             // function lists all the
                             // files and directories.
   );
   Additional return fields:
      integer NumFiles;      // The number of files in
                             // FileNames.
      string  FileNames[];   // The list of file names.
      integer NumSubdirs;    // The number of
                             // subdirectories.
      string  SubdirNames;   // The list of subdirectory
                             // names.

Allocating Arrays

Functions Introduced:

pfcScript.pwluBooleanArrayAlloc()

pfcScript.pwluDoubleArrayAlloc()

pfcScript.pwluIntArrayAlloc()

pfcScript.pwluStringArrayAlloc()

These functions allocate arrays of Boolean values, doubles, integers, and strings, respectively. Each function takes a single argument.

Note

These functions return the allocated array.

The syntax of the functions is as follows:

   boolean pwluBooleanArrayAlloc (
      integer ArraySize // The size of the Boolean
                        // array to allocate. Use
                        // parseInt with this argument.
   );

   number[] pwluDoubleArrayAlloc (
      integer ArraySize // The size of the number array
                        // to allocate. Use parseInt
                        // with this argument.
   );

   integer[] pwluIntArrayAlloc (
      integer ArraySize // The size of the integer array
                        // to allocate. Use parseInt
                        // with this argument.
   );

   string[] pwluStringArrayAlloc (
      integer ArraySize // The size of the string array
                        // to allocate. Use parseInt with
                        // this argument.
   );

Refer to section Features for a code example that uses the pfcScript.pwluIntArrayAlloc() function. See the section Selection for a code example that uses the pfcScript.pwluStringArrayAlloc() function.

Superseded Methods

Due to the changes in the connection and security model in the embedded browser version of Web.Link, the following methods belonging to the older version of Pro/Web.Link are obsolete:

•

pwlProEngineerStartAndConnect

•

pwlProEngineerConnect

•

pwlProEngineerDisconnectAndStop

•

pwlAccessRequest

Note

These functions are provided in the embedded browser Web.Link in order to avoid scripting errors. They are not useful in developing any applications and can be removed.

Web.Link Constants

This section lists the constants defined for Web.Link. The constants are arranged alphabetically in each category (Dimension Styles, Dimension Types, Family Table Types, and so on).

Dimension Styles
